The 10 UL fuse classes, one card each: overload type, interrupting rating, voltage, amp range, and the Littelfuse, Bussmann and Edison series. Type a class, voltage, amps or brand to filter it.
Every fuse class on the screen, then the filter. 11 steps.

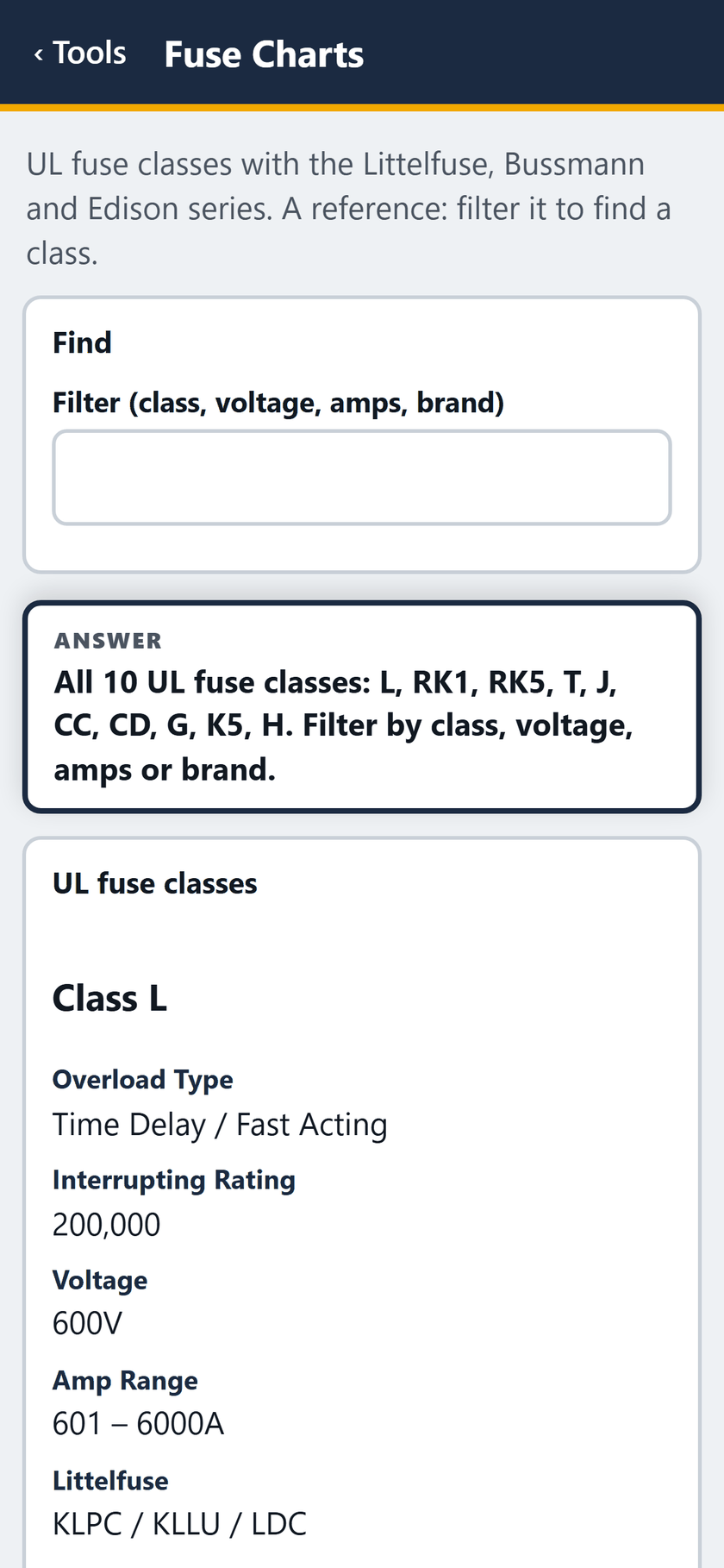

STEP 1 OF 11Fuse Charts opens on all 10 UL fuse classes, L to H, with the filter empty. Class L heads the list.

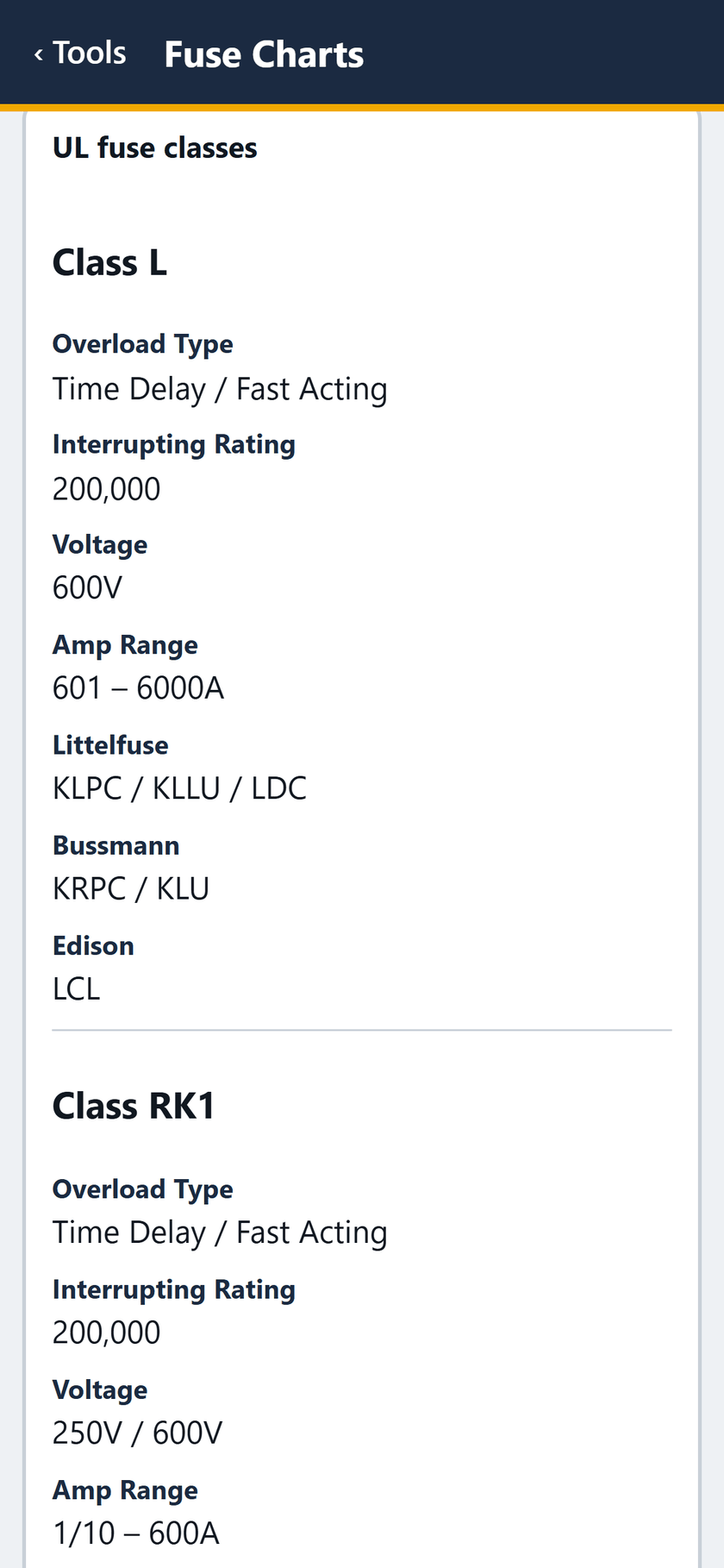

STEP 2 OF 11One card per class. Class L: 200,000 interrupting rating, 600V, 601 - 6000A, with the Littelfuse, Bussmann and Edison series.

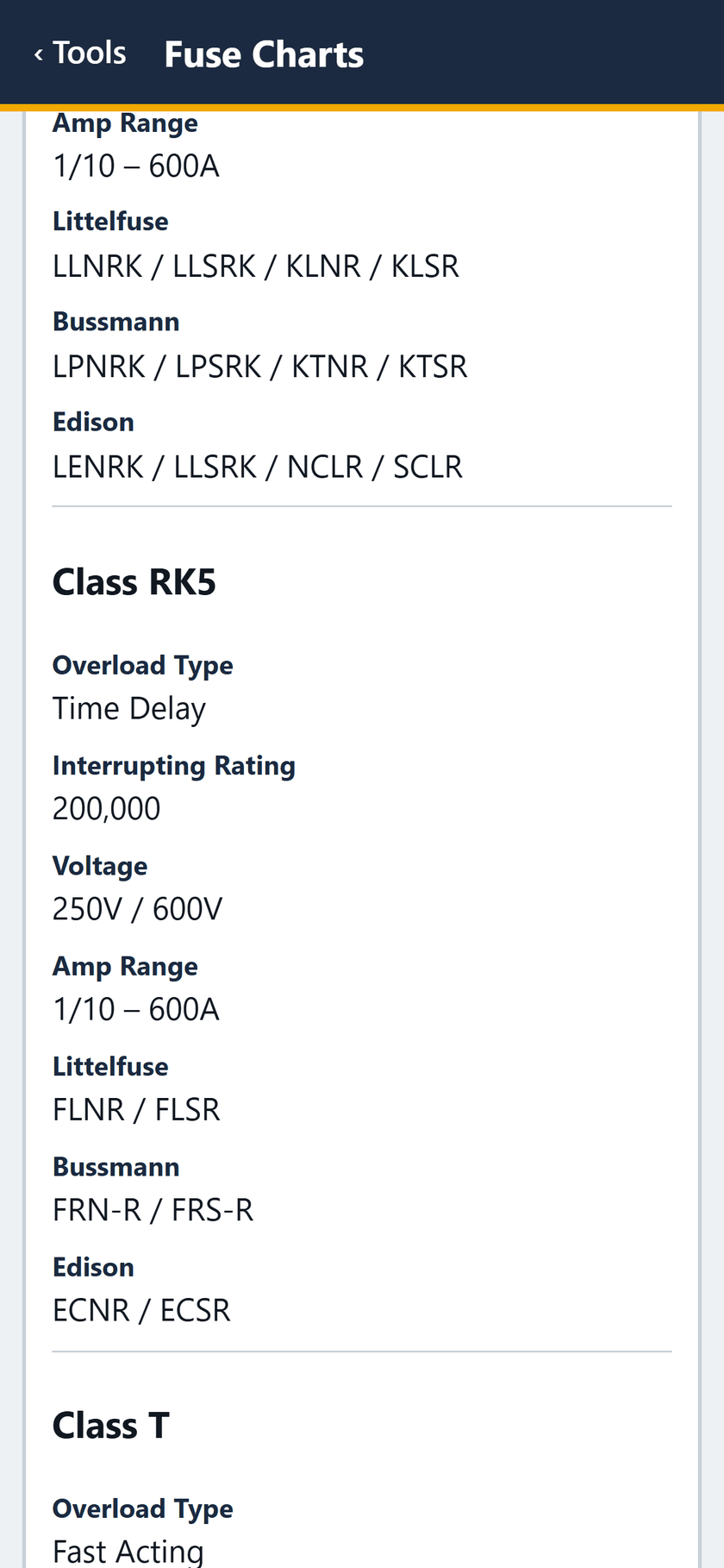

STEP 3 OF 11Class RK1's series for the three makers, then Class RK5: time delay, 250V / 600V, 1/10 - 600A.

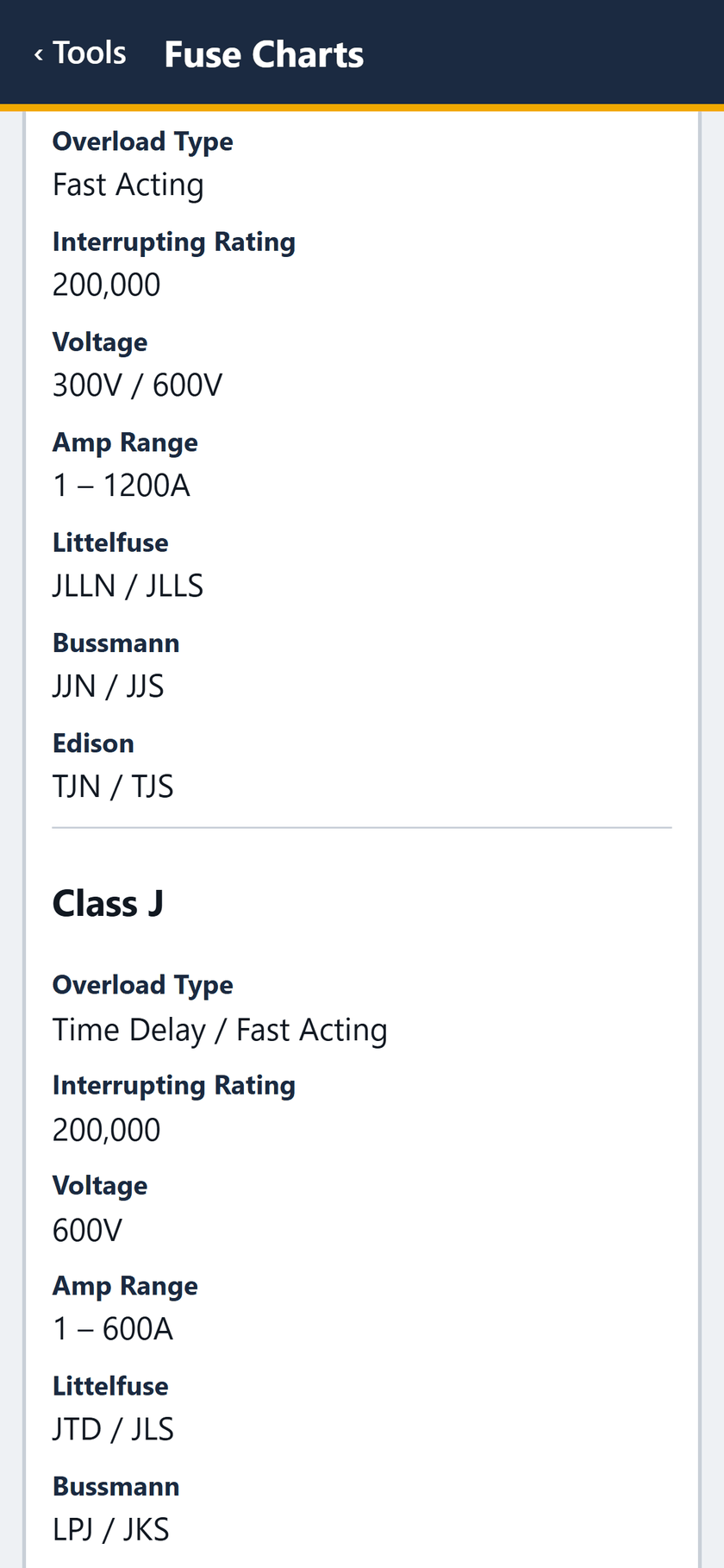

STEP 4 OF 11Class T: fast acting, 300V / 600V, 1 - 1200A. Class J: time delay / fast acting, 600V, 1 - 600A.

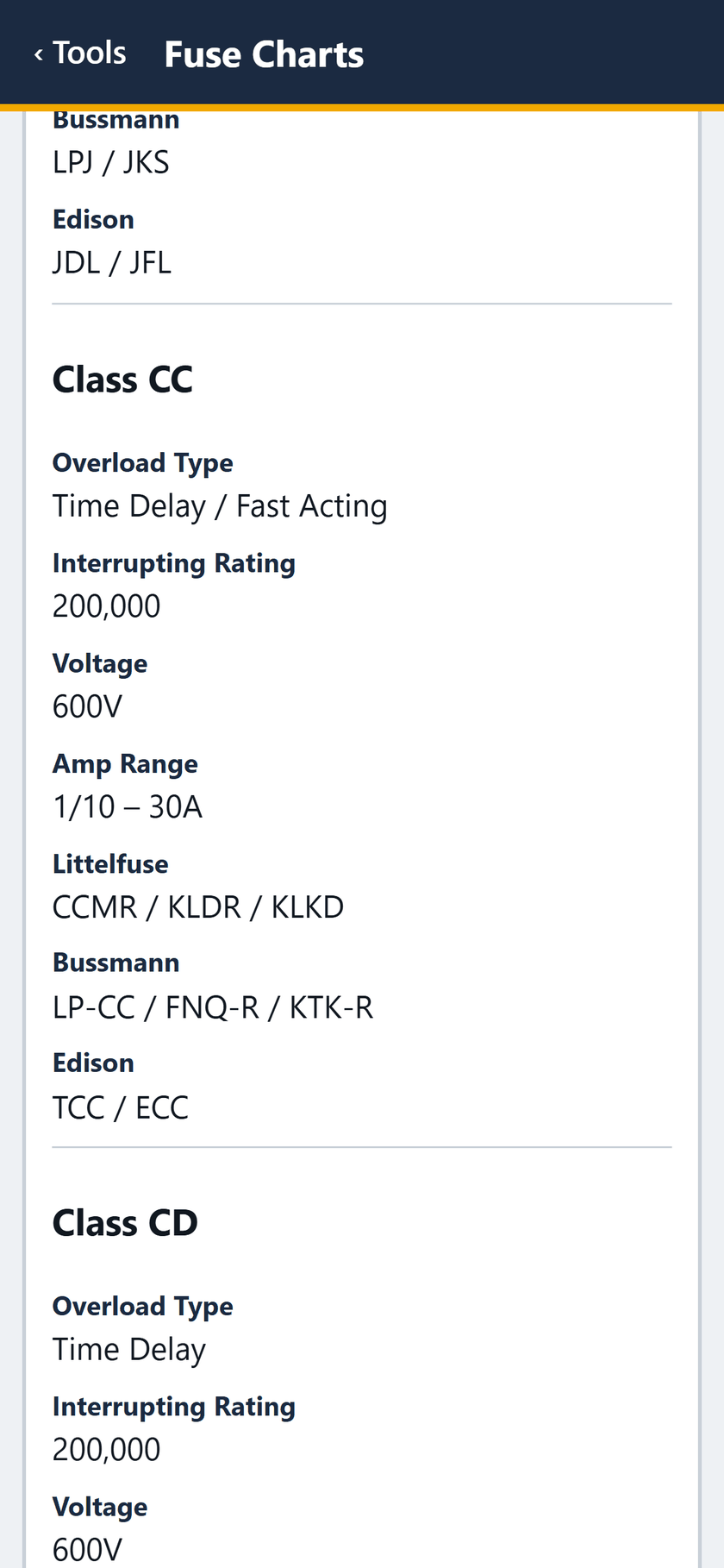

STEP 5 OF 11Class CC: 600V, 1/10 - 30A, with its three series. Class CD begins.

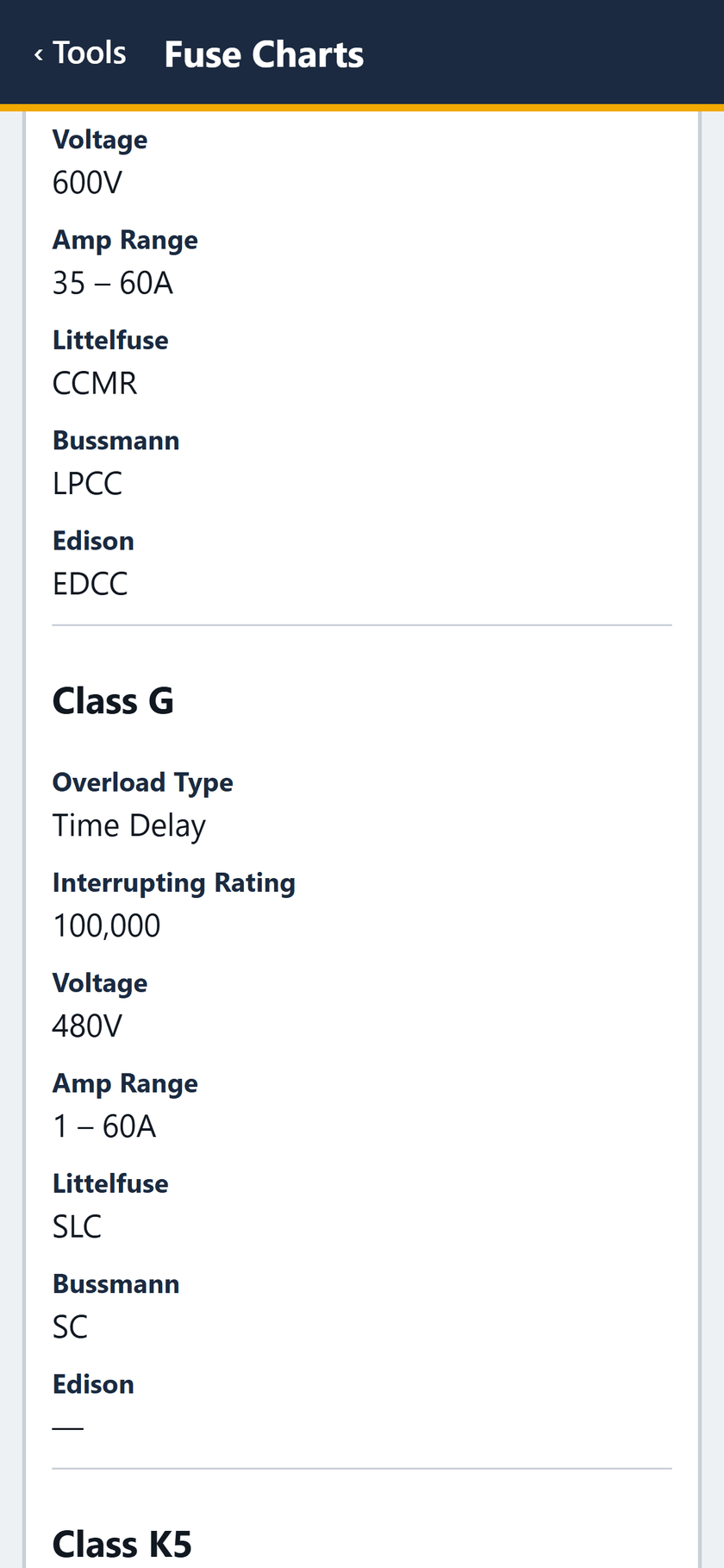

STEP 6 OF 11Class CD: 35 - 60A. Class G: 100,000 interrupting rating, 480V, 1 - 60A, no Edison series.

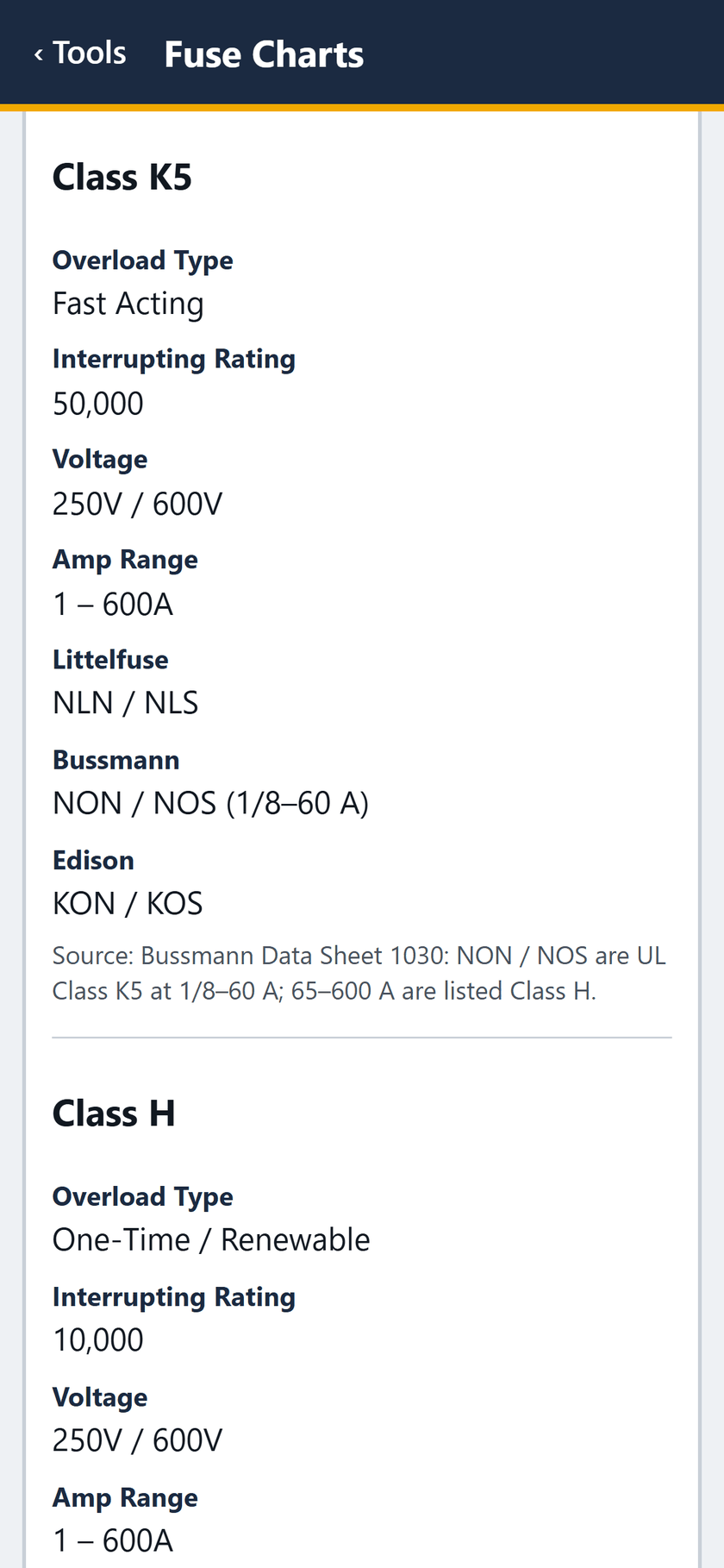

STEP 7 OF 11Class K5: 50,000, Bussmann NON / NOS at 1/8-60 A, with its source, Bussmann Data Sheet 1030.

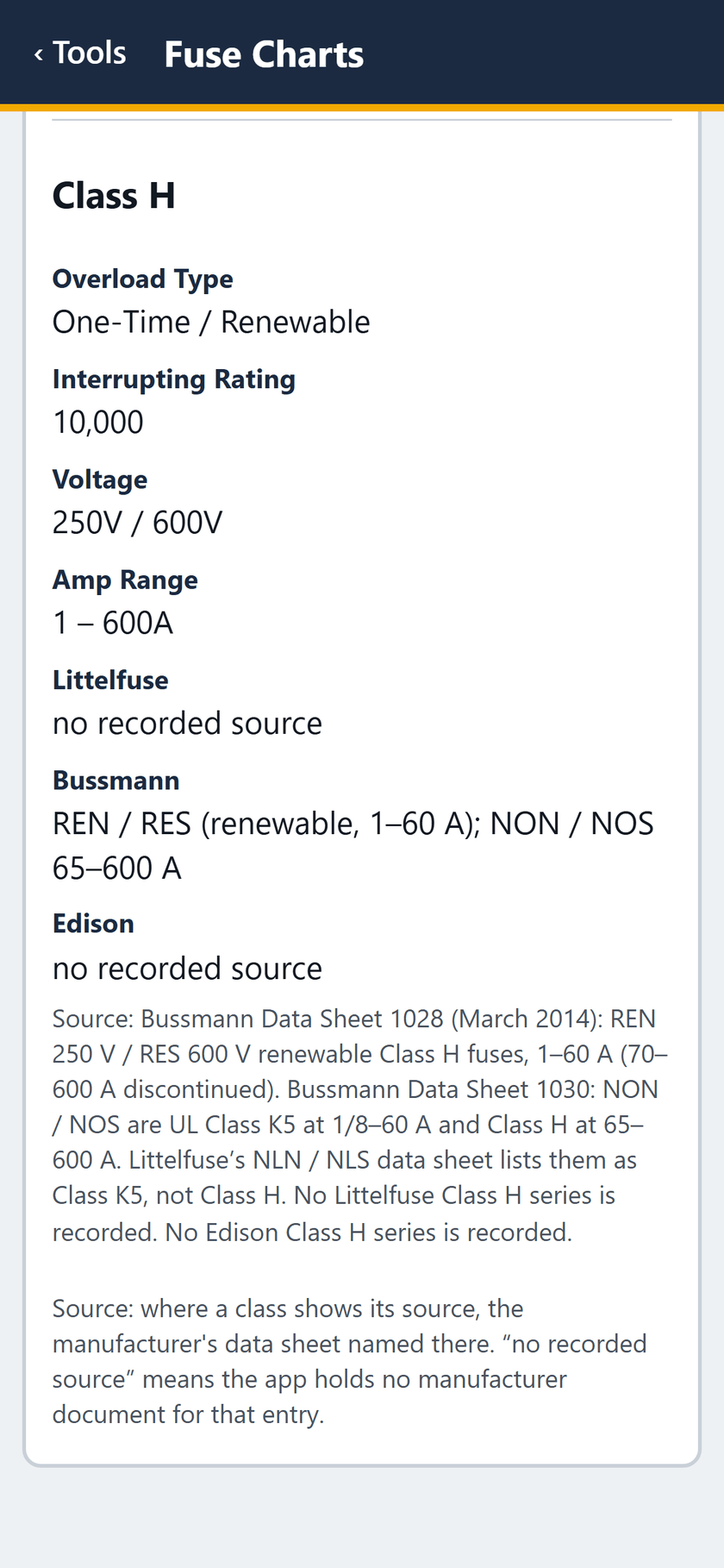

STEP 8 OF 11Class H: 10,000, Bussmann REN / RES and NON / NOS 65-600 A. Littelfuse and Edison: no recorded source.

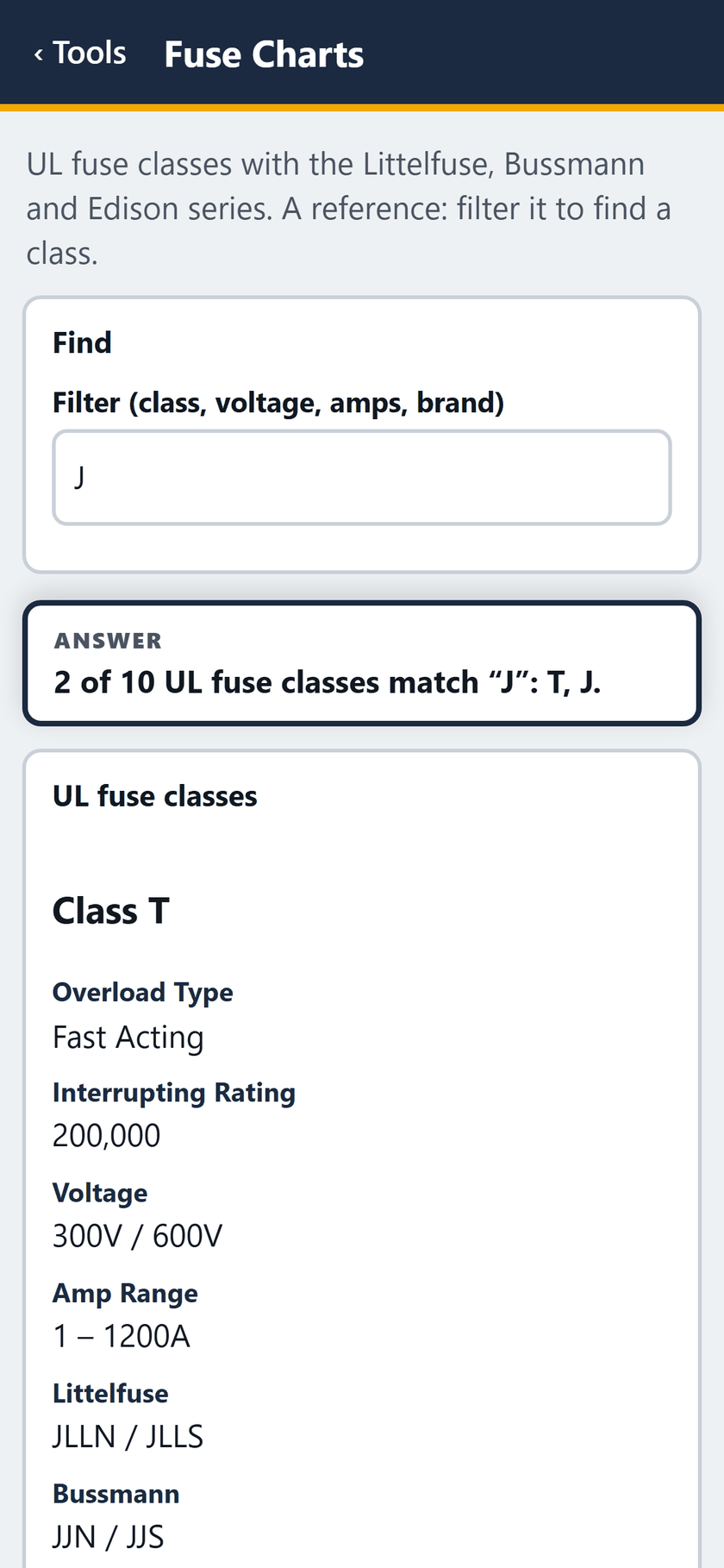

STEP 9 OF 11Filter J: 2 of 10 classes match, T and J.

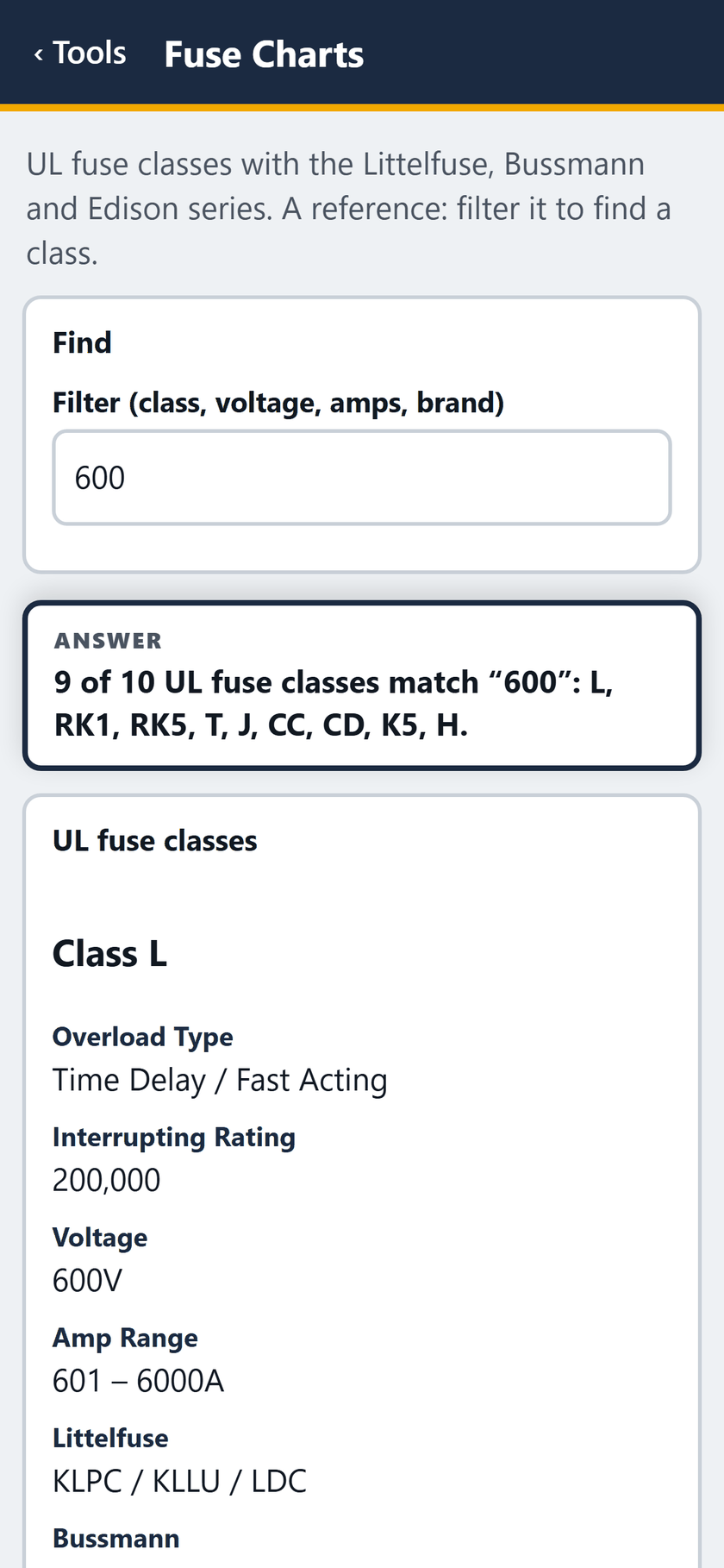

STEP 10 OF 11Filter 600: 9 of 10 classes match, every class but G.

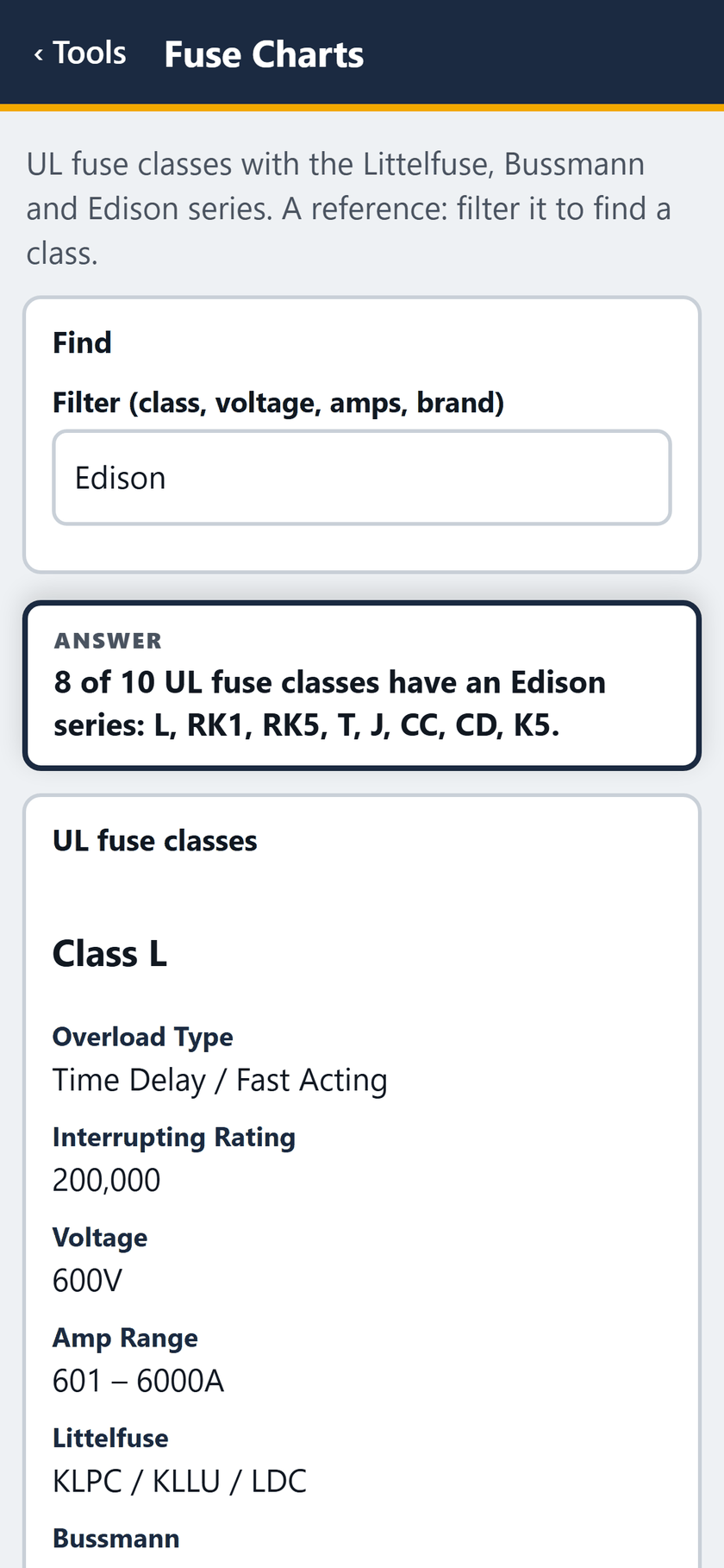

STEP 11 OF 11Filter Edison: 8 of 10 classes have an Edison series, L, RK1, RK5, T, J, CC, CD and K5.
