You have the box: give it the wall and the conduits in your order. It gives every hole center from the left and top edges, the Greenlee hole size, and the rule that set each gap - NECA, the fitting, a lug's swing or a puller coupler - and writes the punch sheet as a PDF.
The app’s own example, every screen in order, with its conduits added back one at a time. 13 steps.

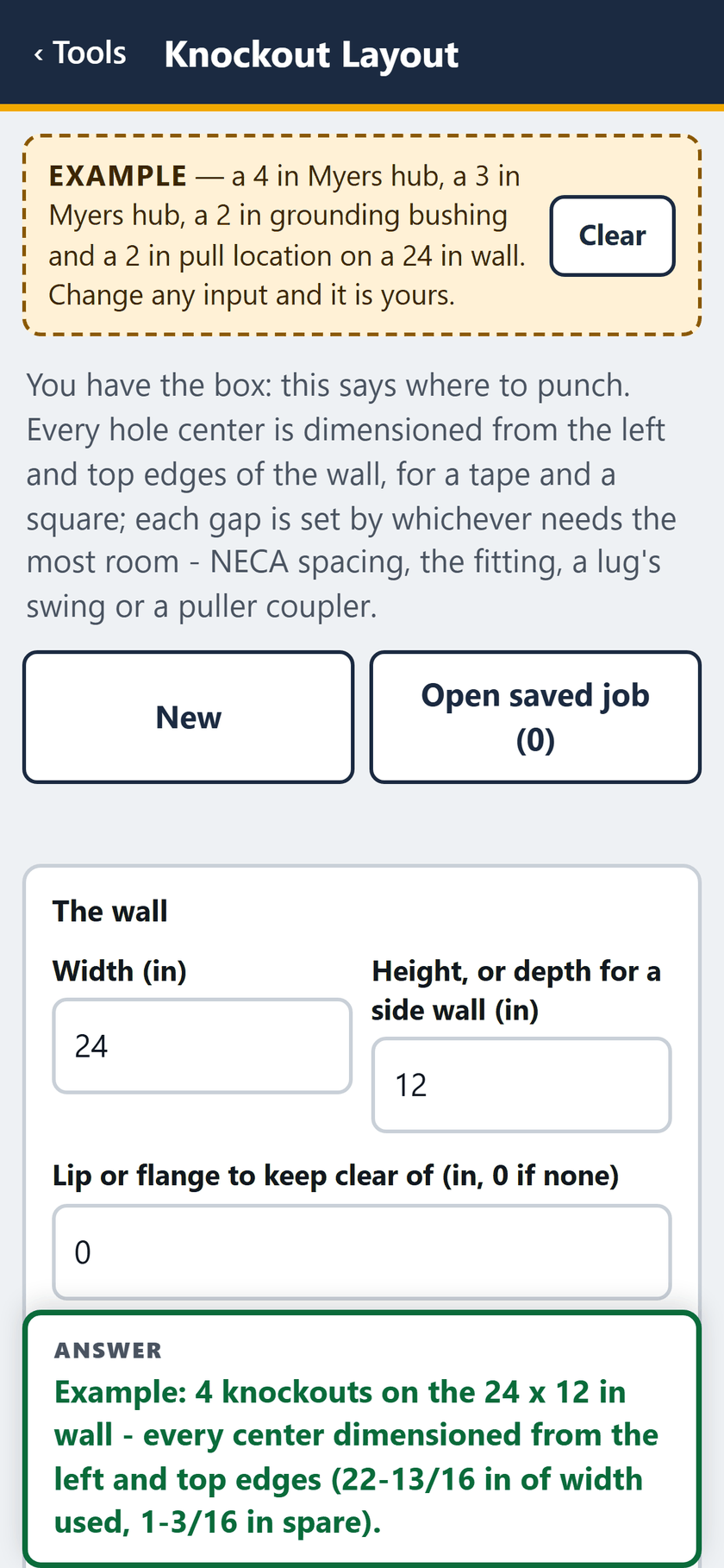

STEP 1 OF 13The example opens filled in: a 24 x 12 in wall, with the answer pinned at the foot of the screen.

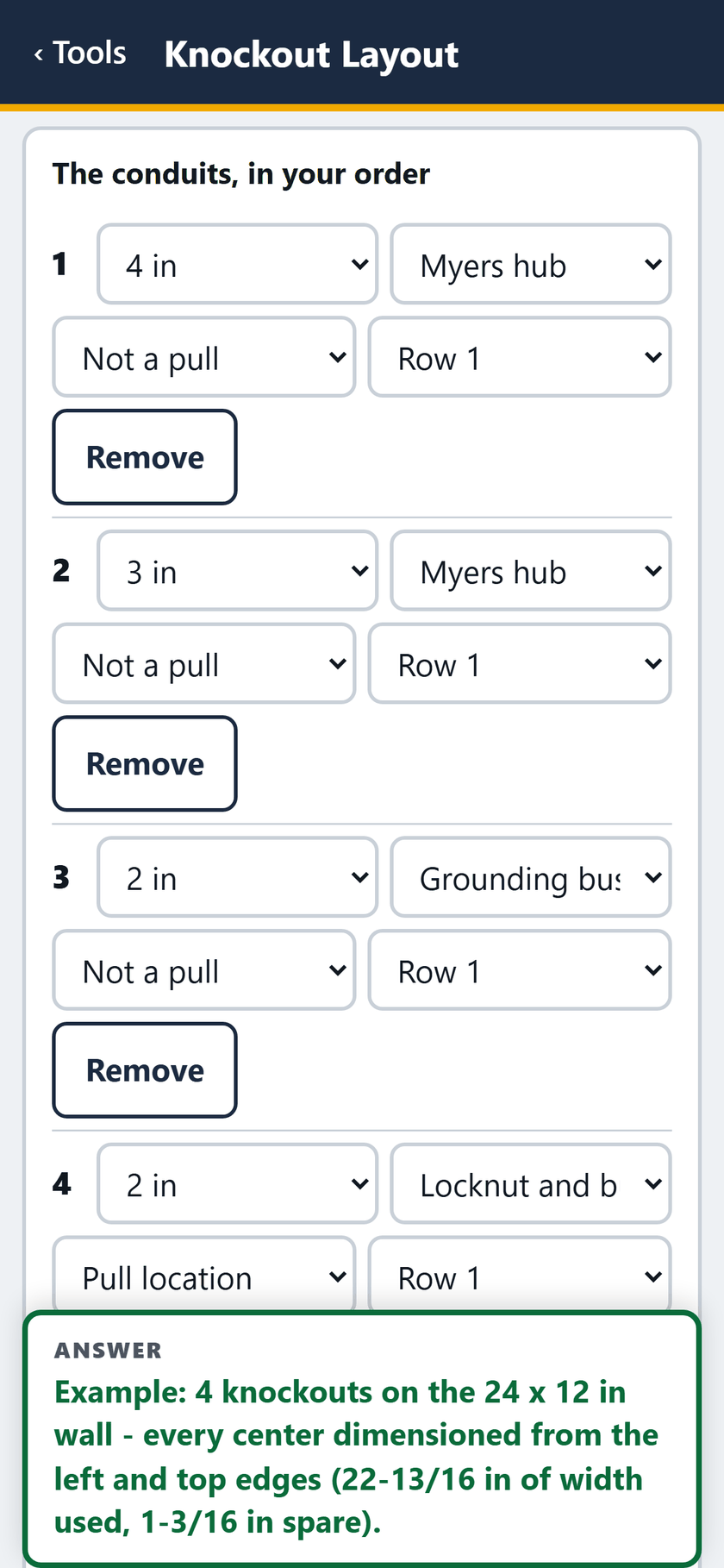

STEP 2 OF 13The conduits, in your order: 4 in and 3 in Myers hubs, a 2 in grounding bushing and a 2 in pull location, all on Row 1.

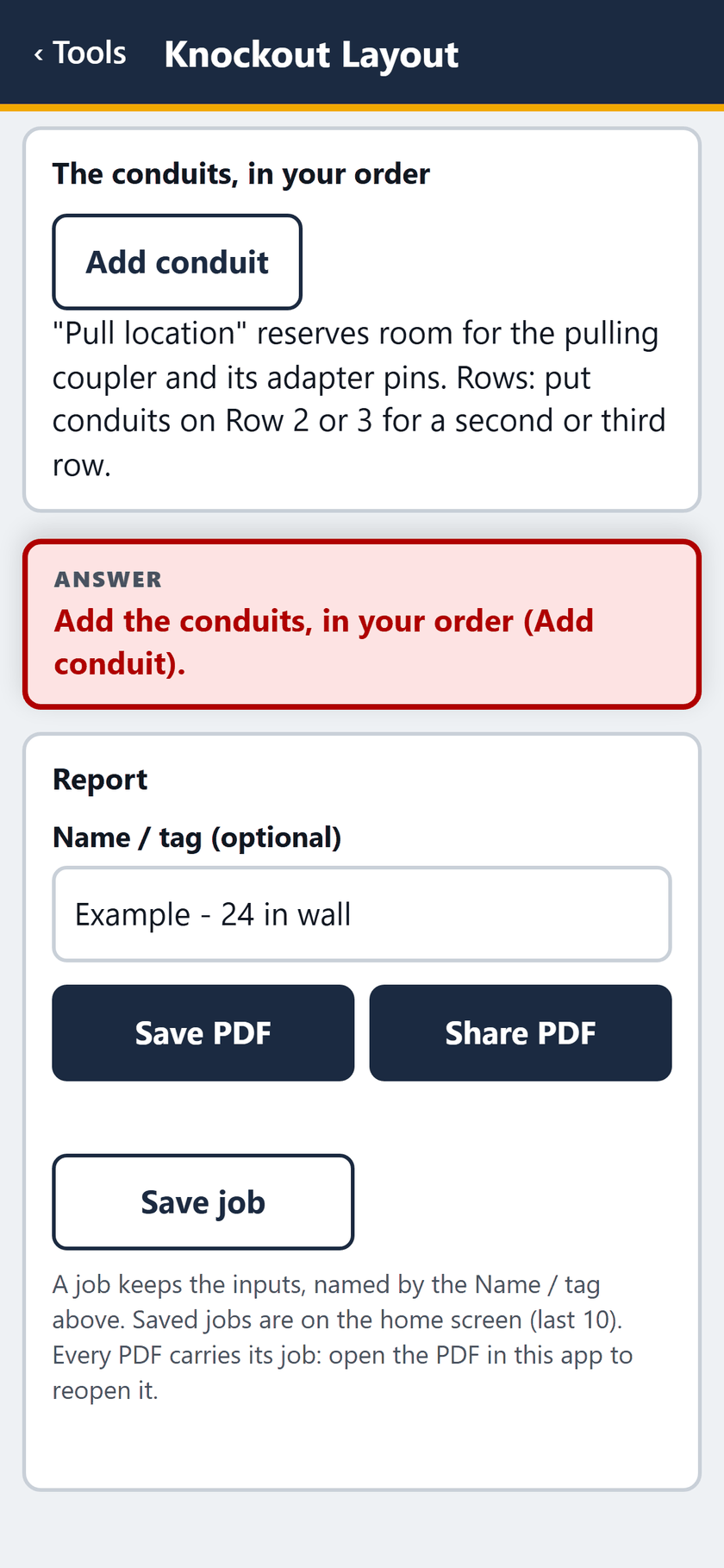

STEP 3 OF 13Building it again: with every conduit removed, the answer asks for the conduits, in your order.

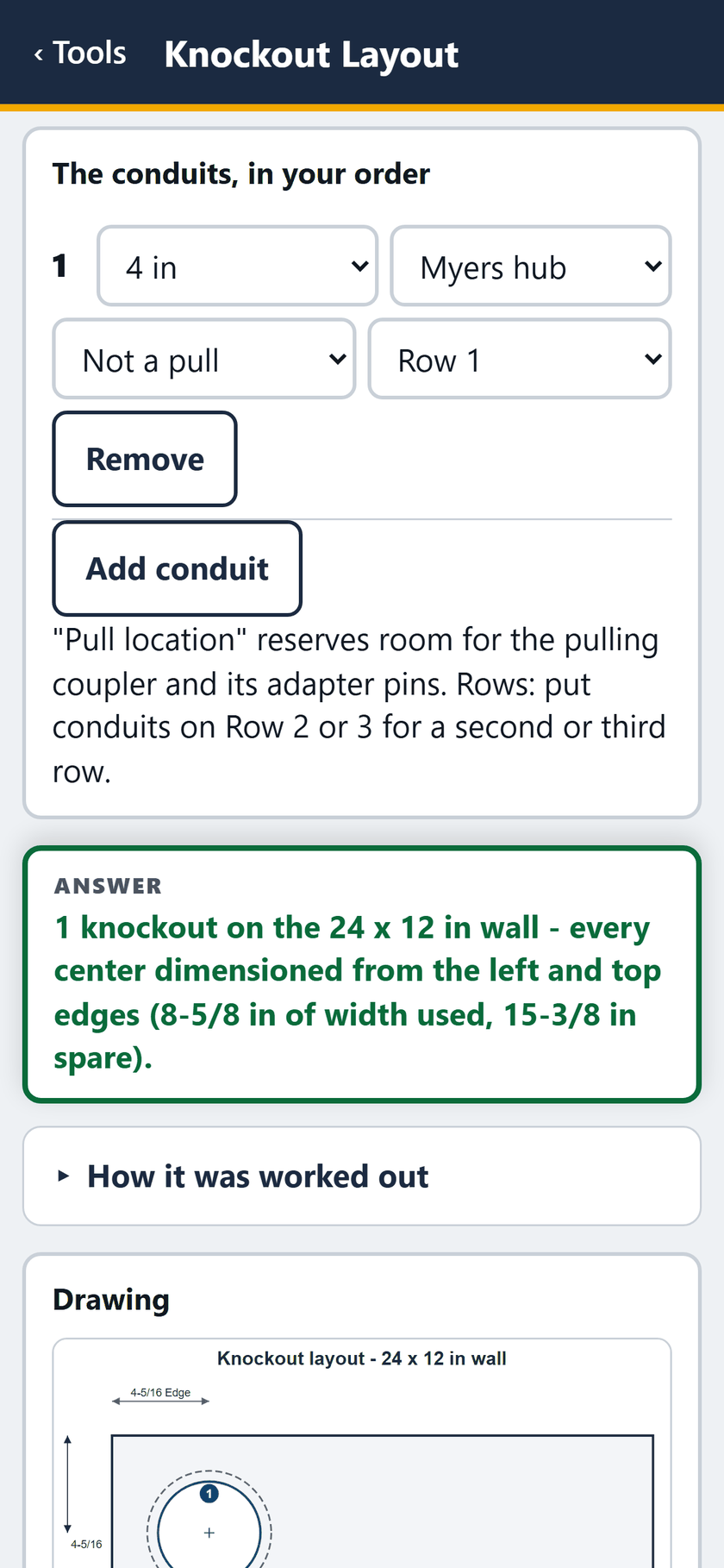

STEP 4 OF 13Conduit 1: a 4 in Myers hub. 1 knockout, 8-5/8 in of width used, 15-3/8 in spare.

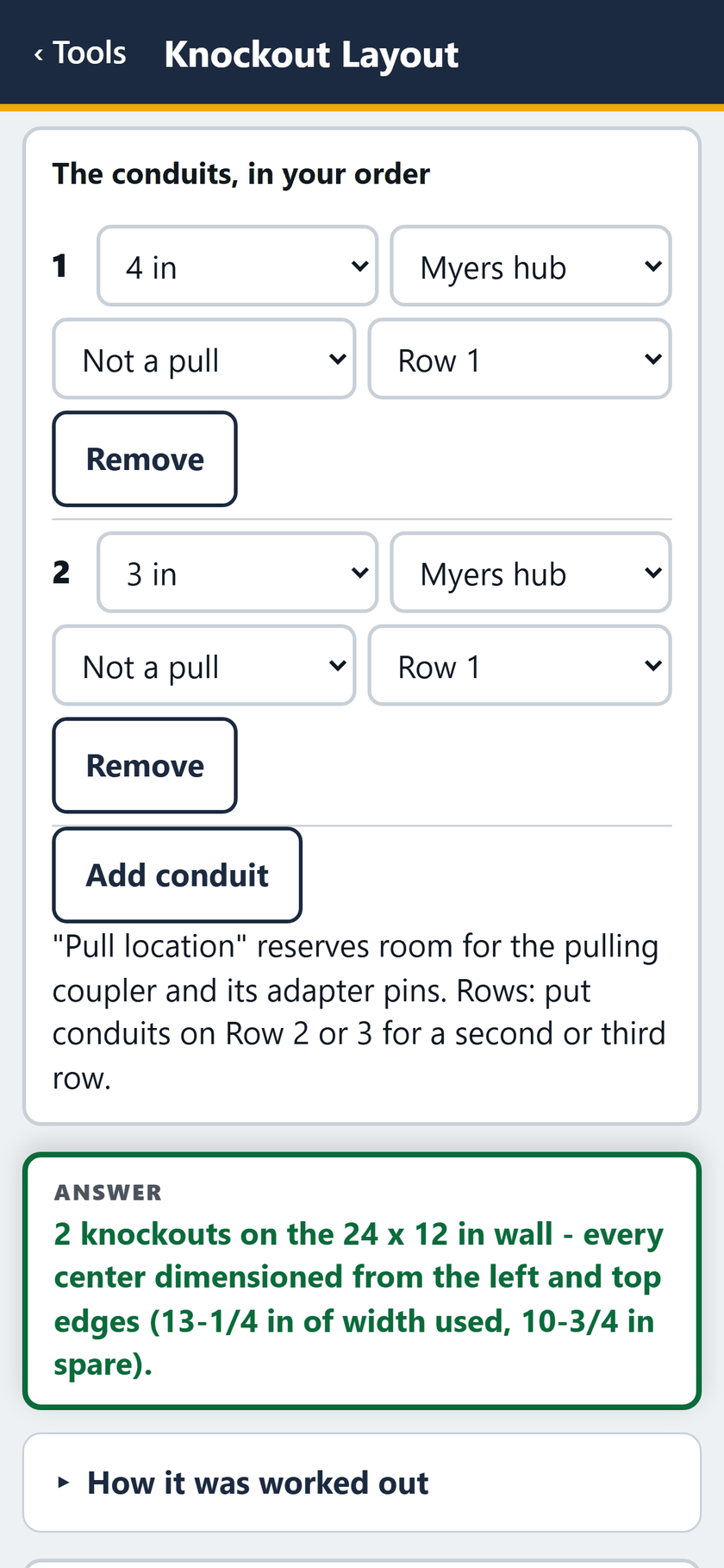

STEP 5 OF 13Conduit 2: a 3 in Myers hub. 2 knockouts, 13-1/4 in used, 10-3/4 in spare.

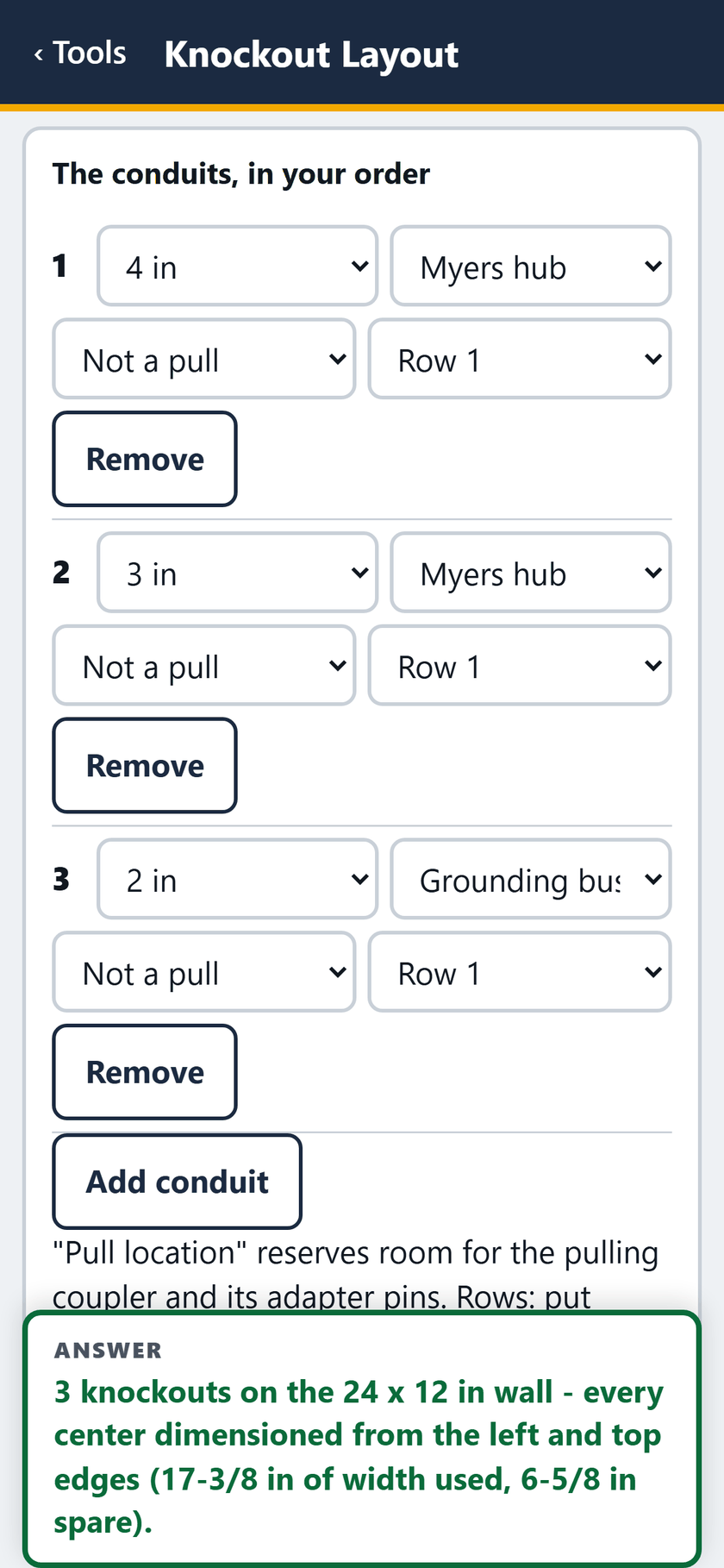

STEP 6 OF 13Conduit 3: a 2 in grounding bushing. 3 knockouts, 17-3/8 in used, 6-5/8 in spare.

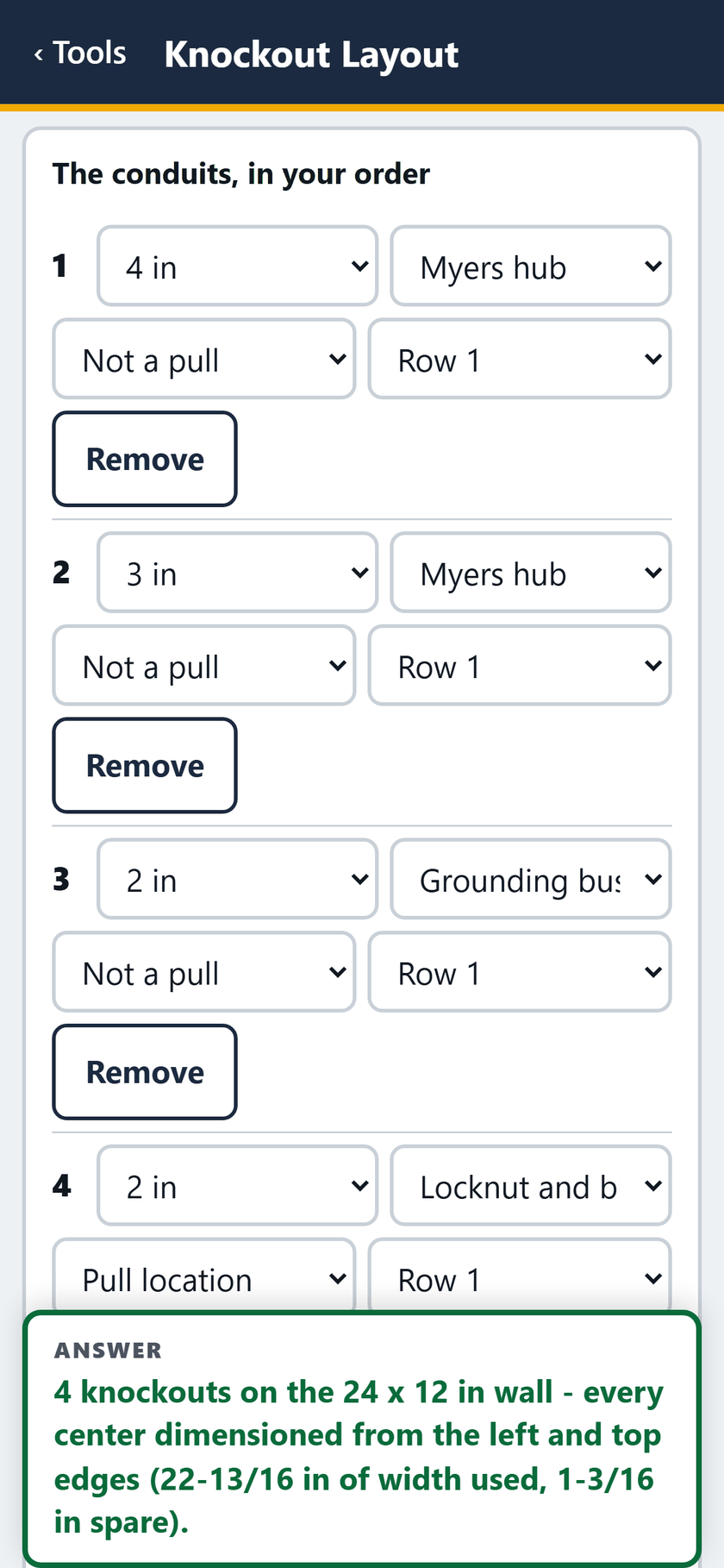

STEP 7 OF 13The conduits, in your order: 4 in and 3 in Myers hubs, a 2 in grounding bushing and a 2 in pull location, all on Row 1.

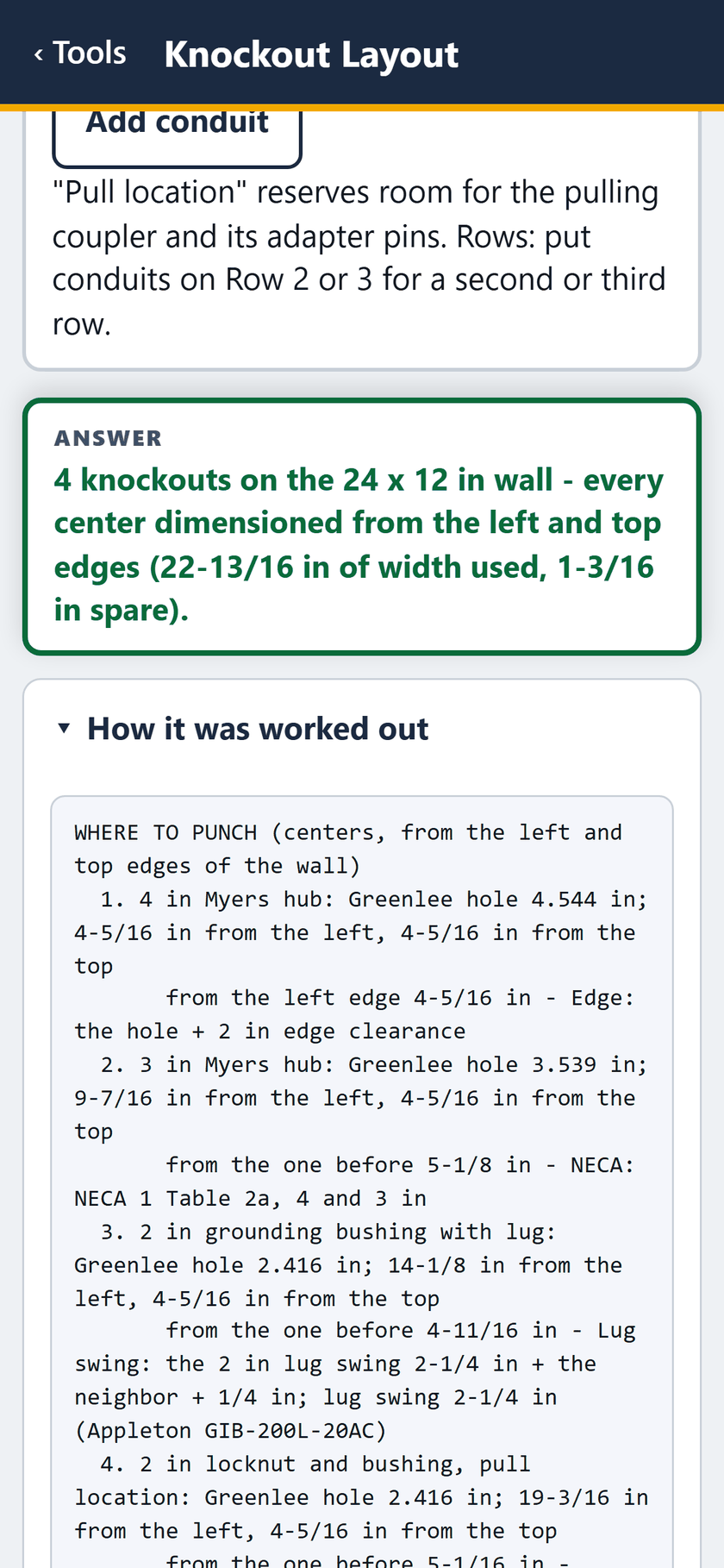

STEP 8 OF 13How it was worked out: each hole's Greenlee size, its center from the left and top, and what set the gap.

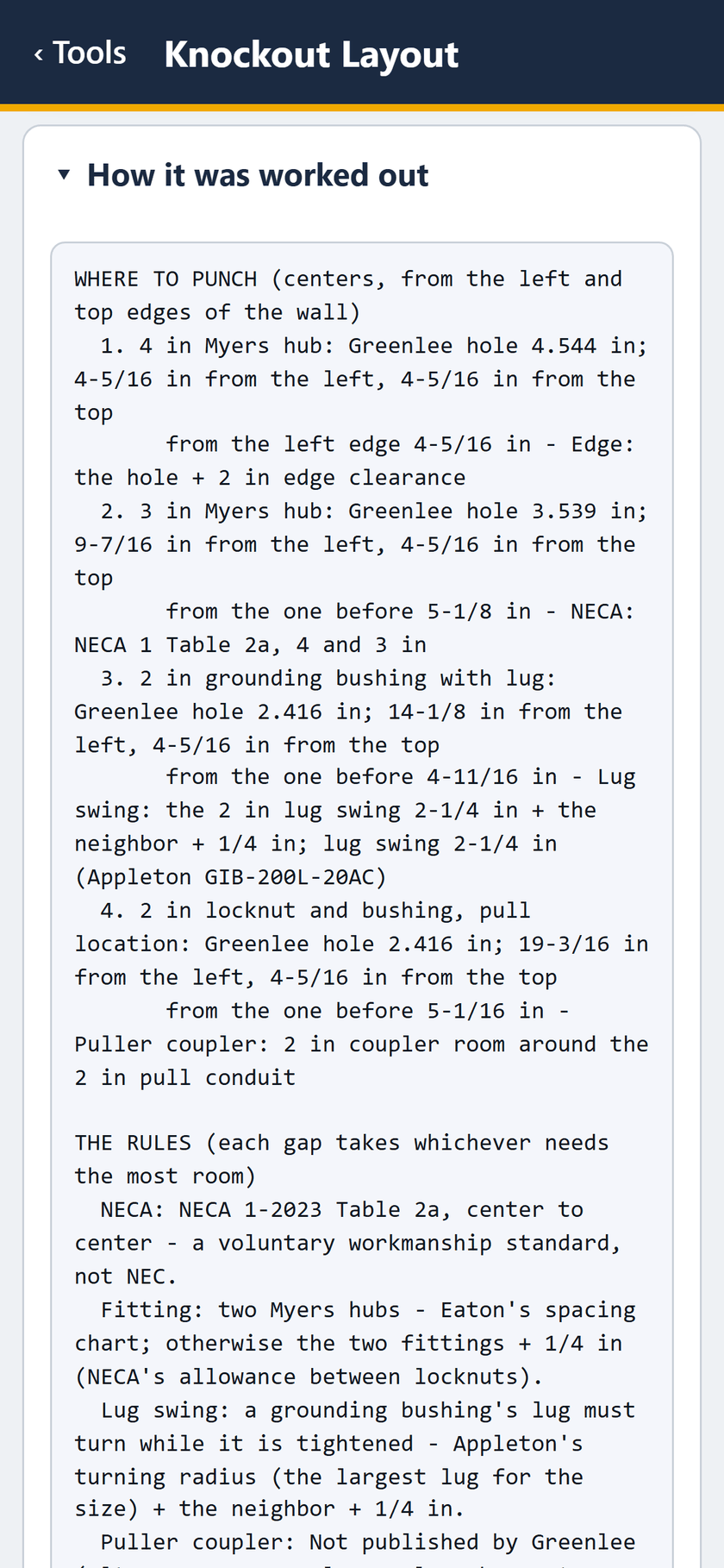

STEP 9 OF 13Gaps set by Edge, NECA, Lug swing (Appleton GIB-200L-20AC) and Puller coupler, then the rules for each.

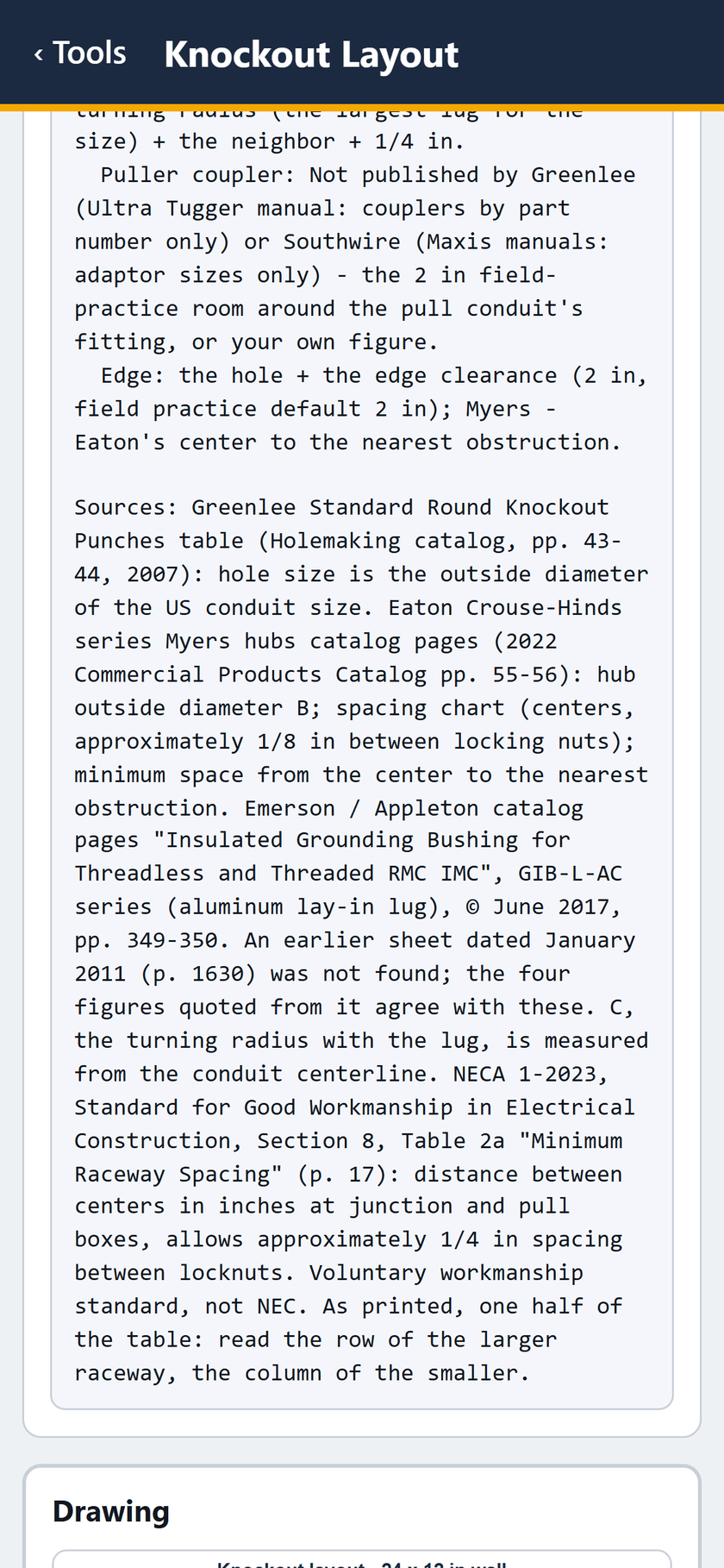

STEP 10 OF 13The sources: Greenlee punch sizes, Eaton Crouse-Hinds Myers hubs, Appleton grounding bushings and NECA 1-2023 Table 2a.

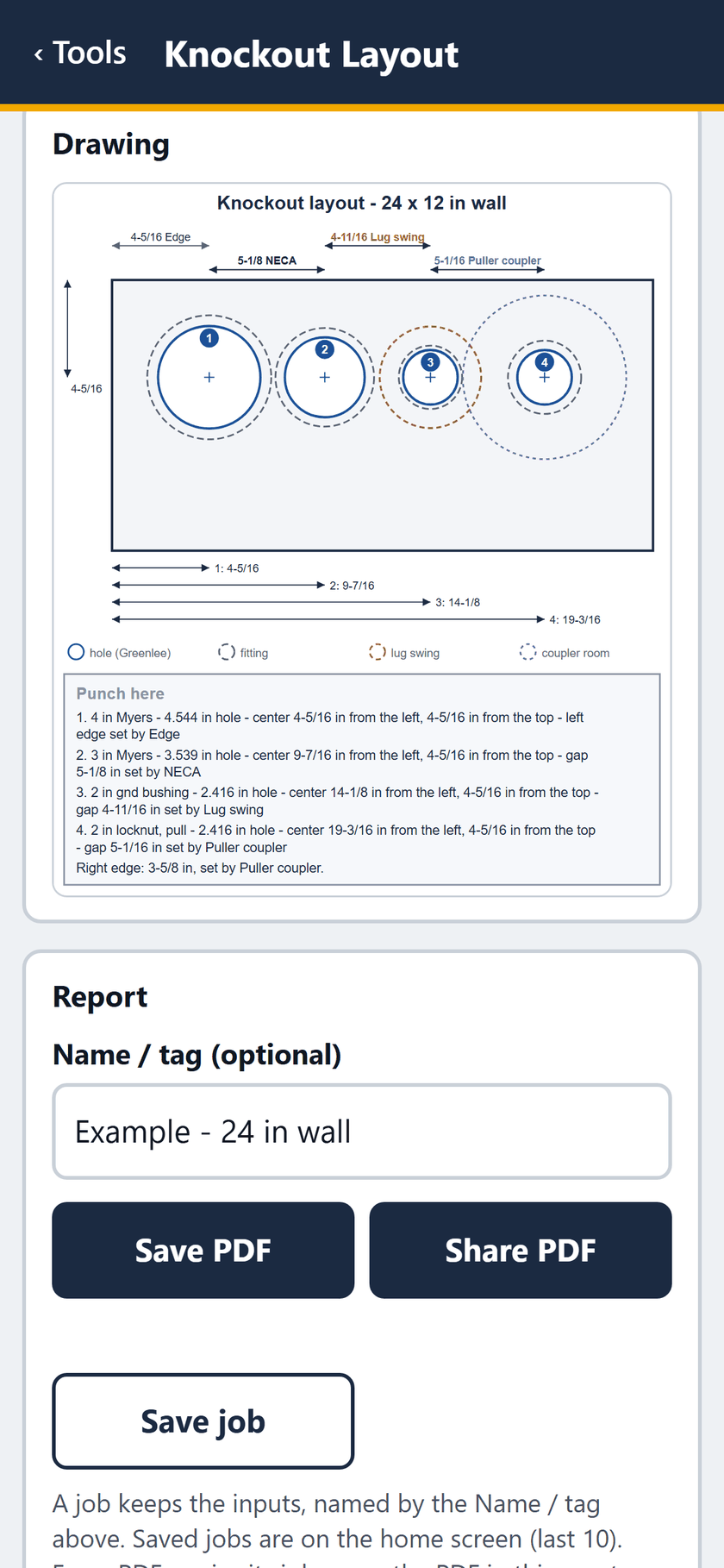

STEP 11 OF 13The drawing: every hole on the 24 x 12 in wall, each gap labeled with its rule, and the punch list.

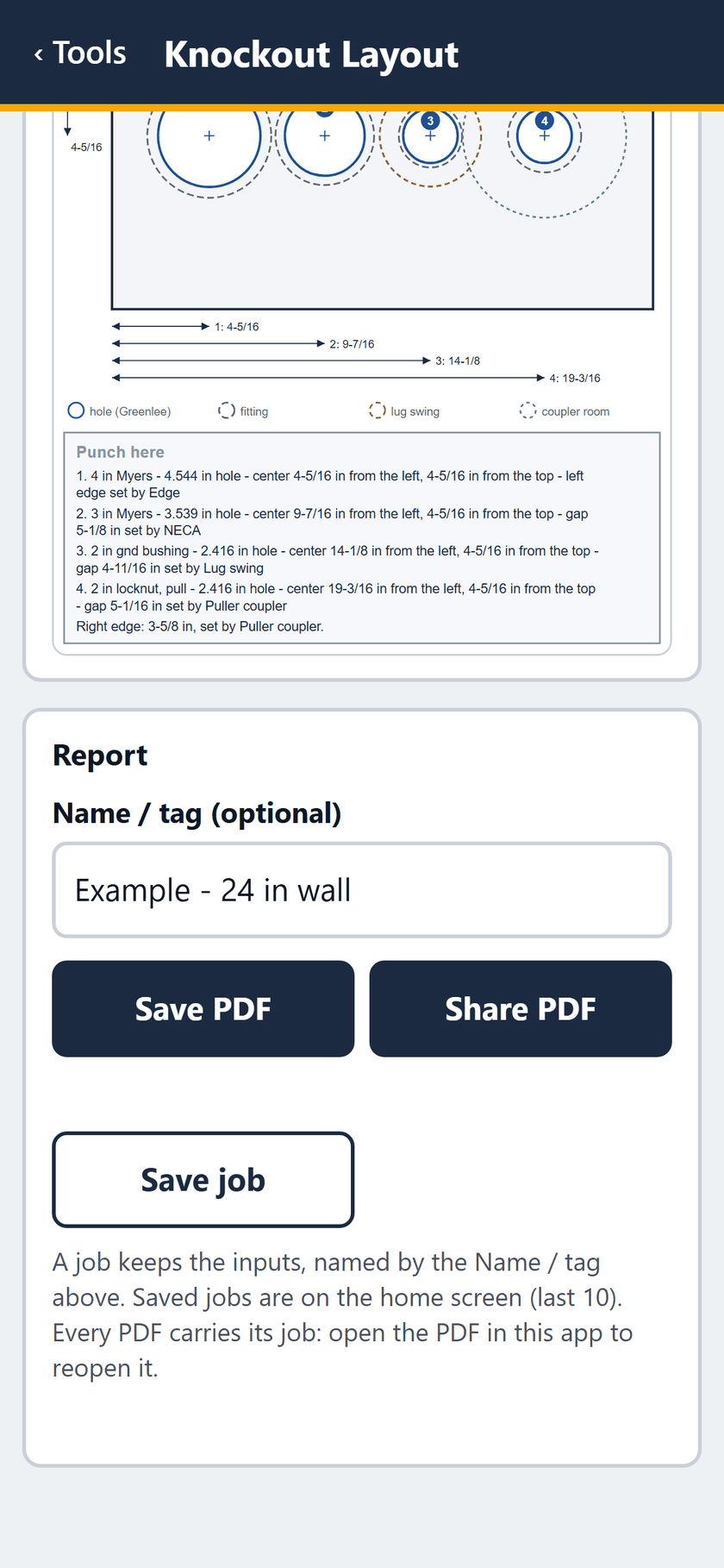

STEP 12 OF 13The report: save or share the PDF, or save the job.

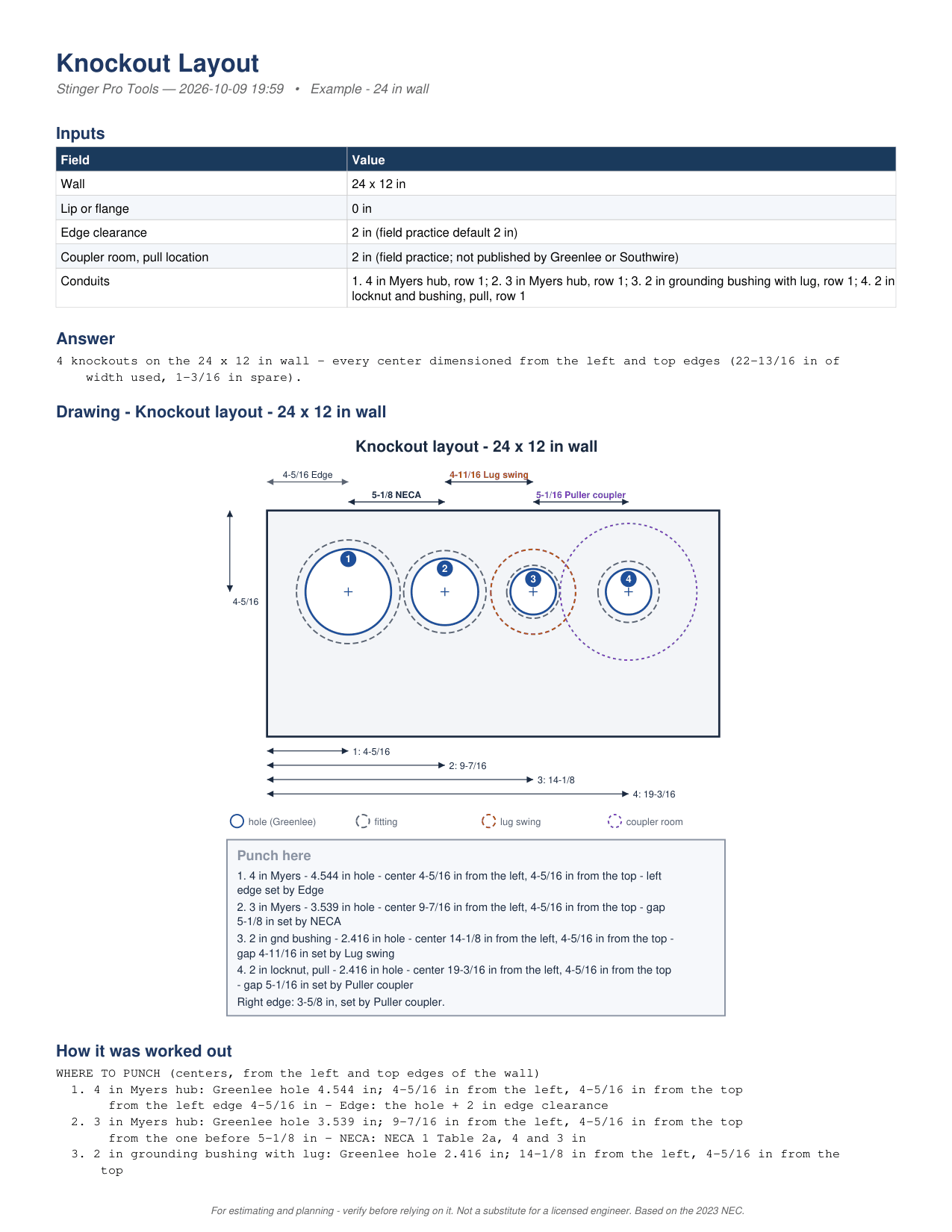

STEP 13 OF 13The PDF, page 1: the inputs, the answer, the drawing with the punch list, and how it was worked out.
The same 13 screens with the captions burned in. No sound.
MP4, 1.6 MB, 14 seconds.

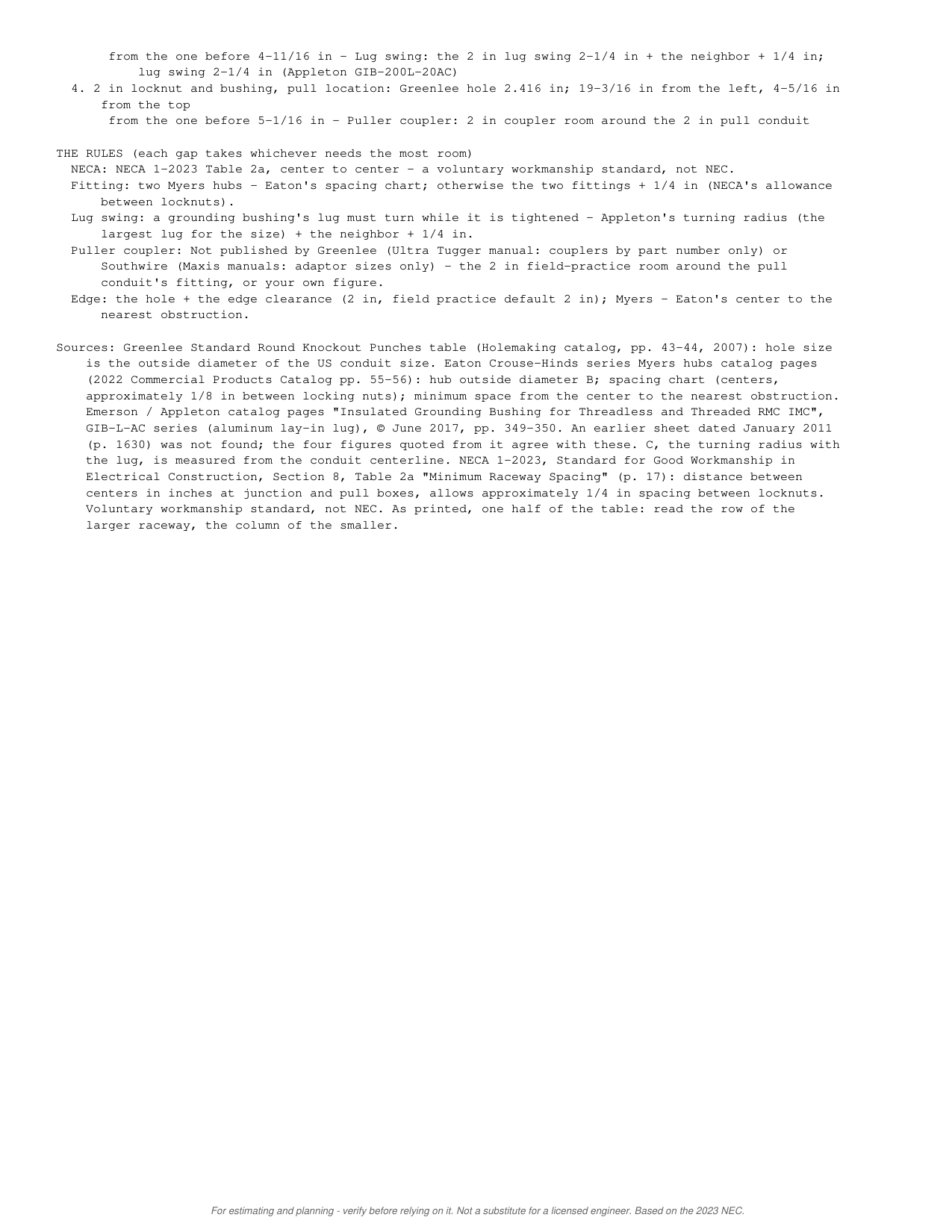

The PDF report for the same job, all 2 pages as the app writes it.
On Android, $49.99 once. Everything on this page.
Knockout Layout is not in the Suite. It was built for the app and runs only in Stinger Pro Tools.
