Motors takes the horsepower, voltage, conduit type, breaker and fuse type for a three-phase motor, and gives back the full-load current, breaker, fuse, conductor, ground, conduit, starter and overload, with a one-line drawing.

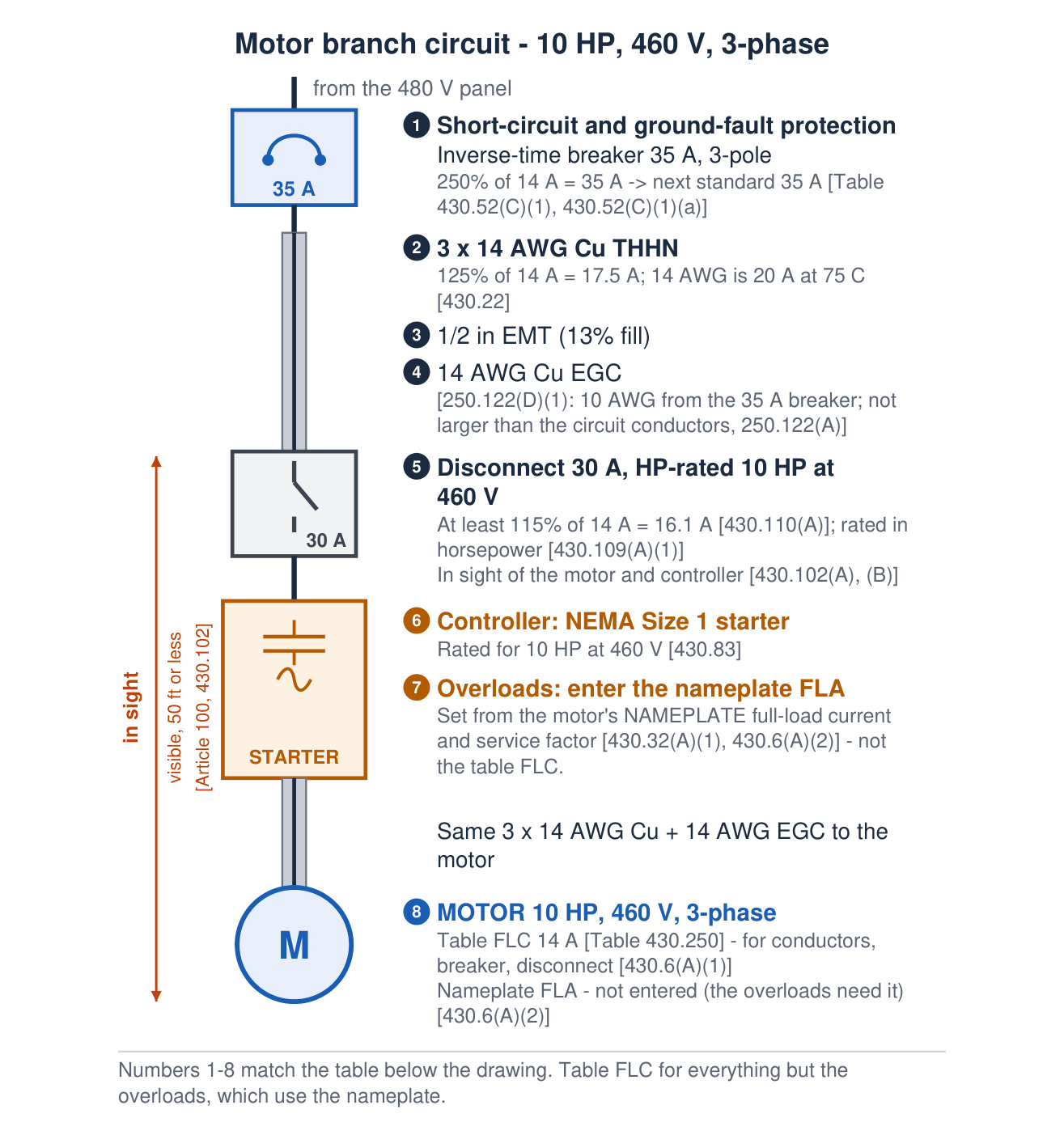

The motor branch circuit drawn as a one-line from the panel to the motor, each part numbered and sized with its NEC section.
The report the Suite wrote for this example: two pages.

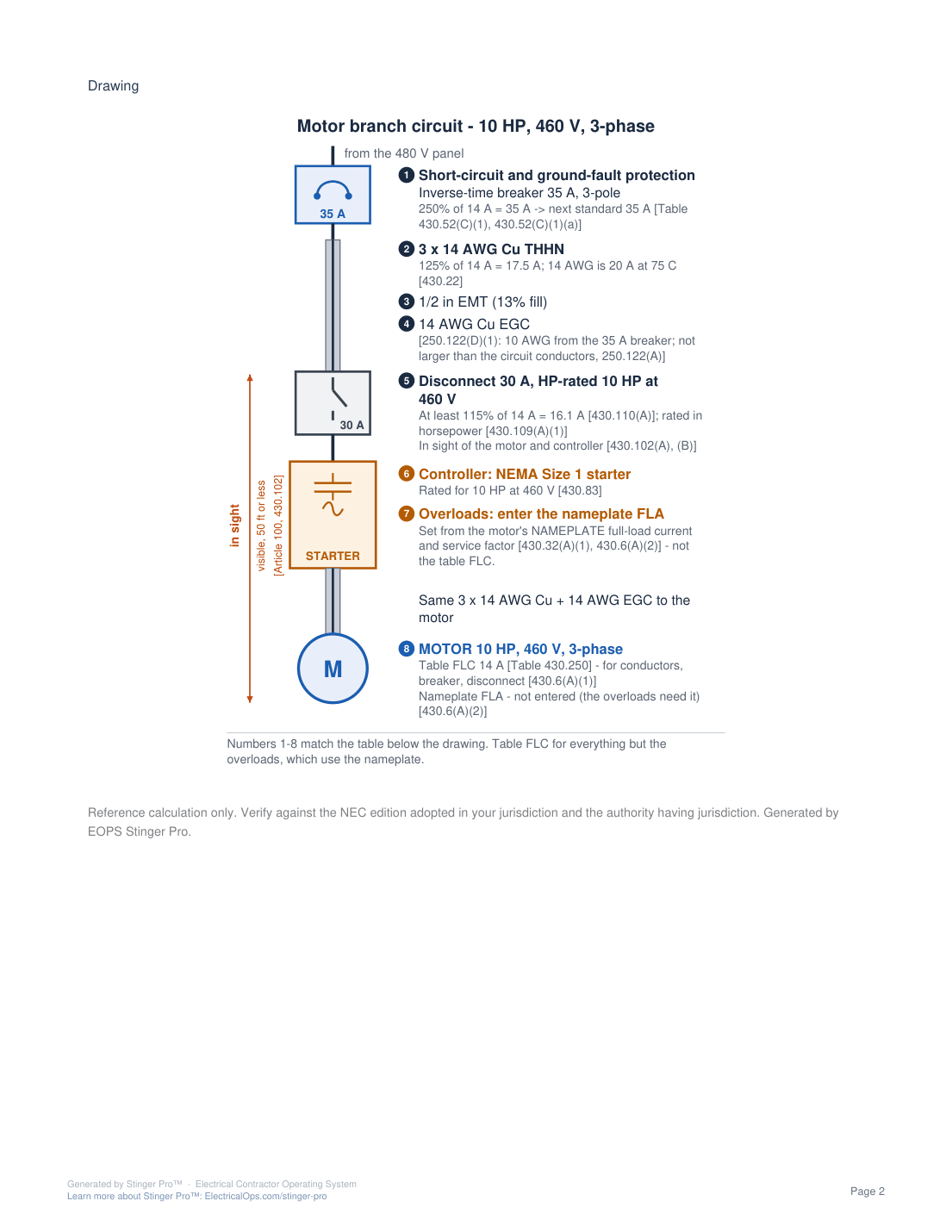

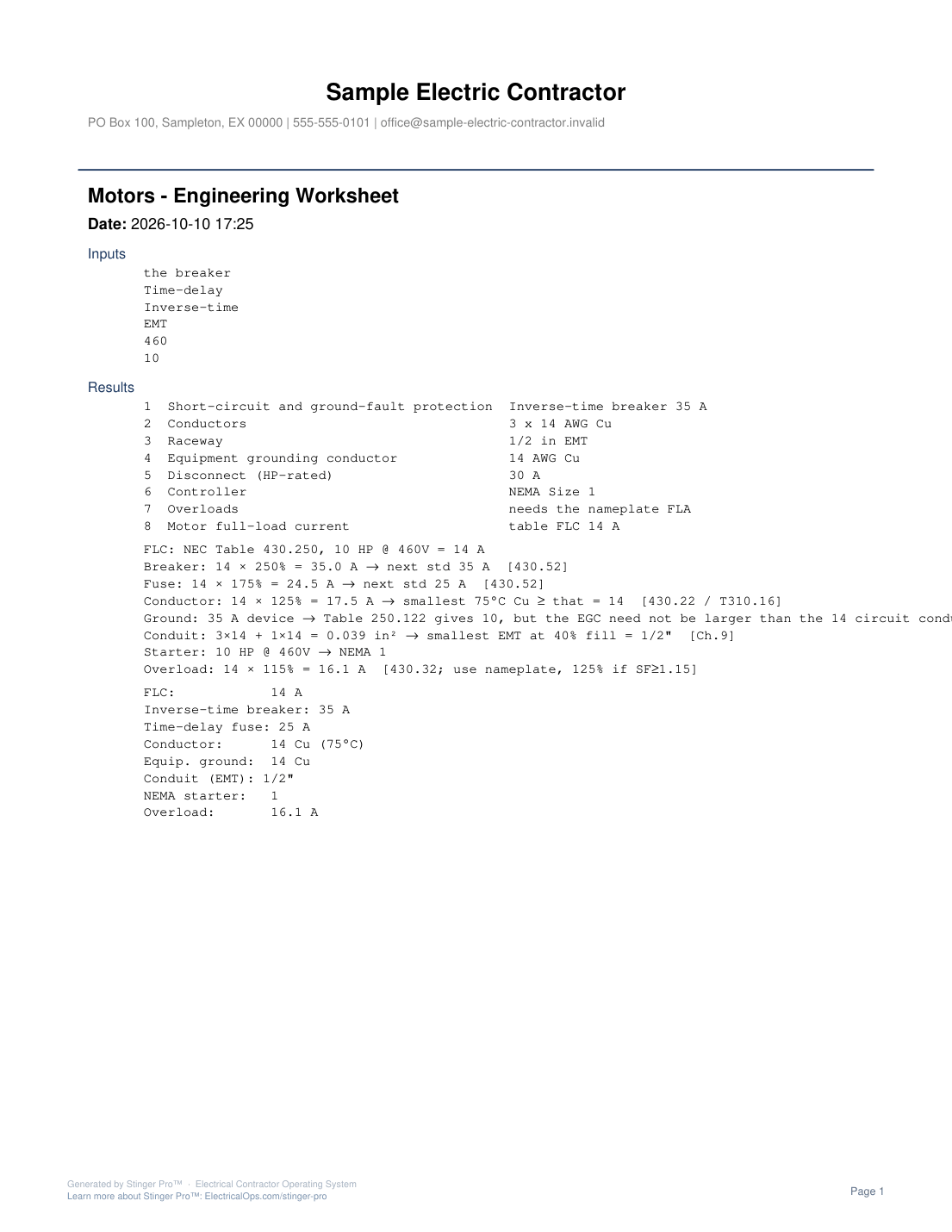

Page 1 is the numbered results and each line of the work with its NEC section; page 2 is the one-line drawing.
The values the tool opens with.

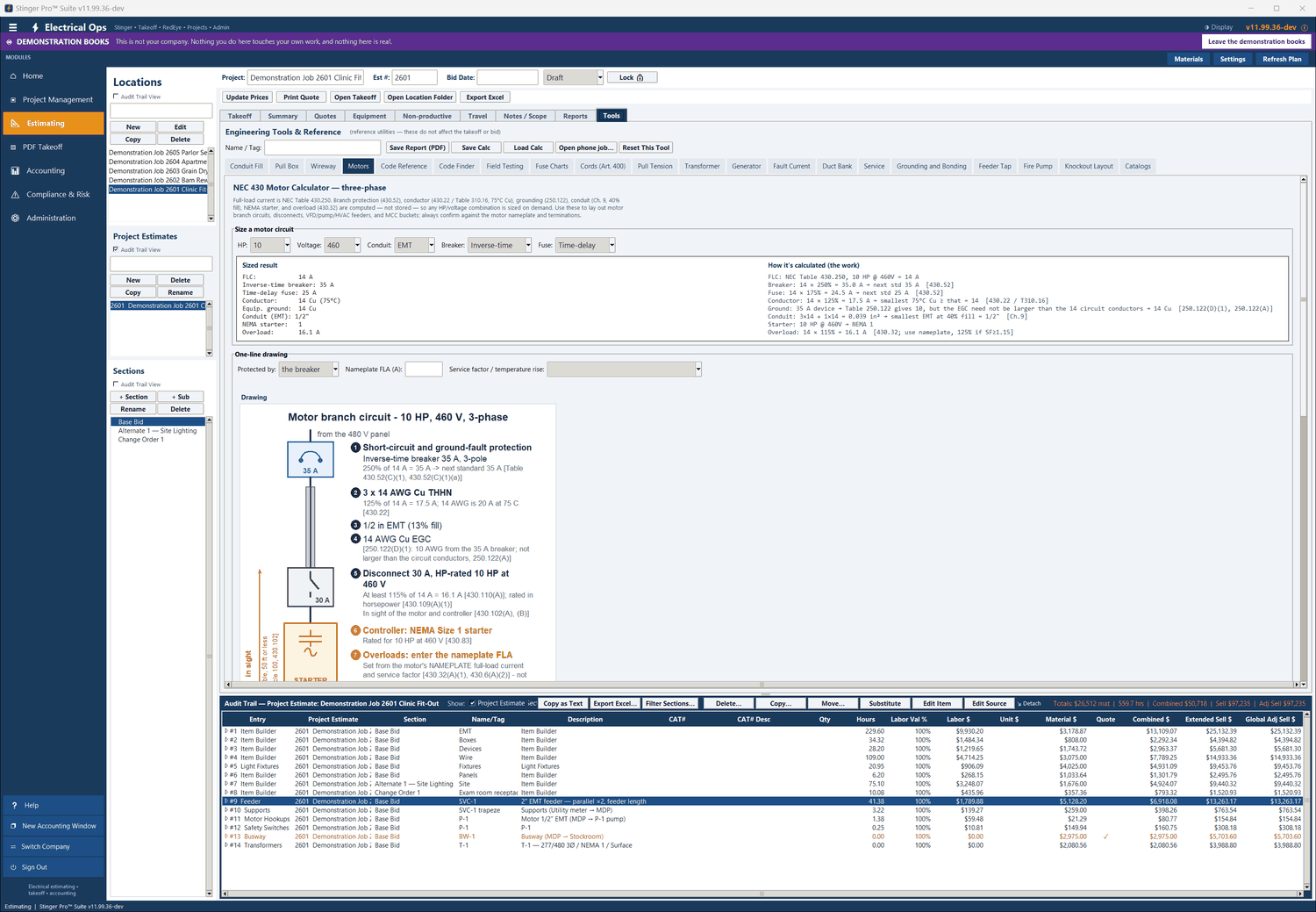

STEP 1 OF 4The tool opens on 10 hp at 460 V: FLC 14 A, 35 A inverse-time breaker, 25 A time-delay fuse, 14 AWG Cu, 1/2 in EMT, NEMA 1, overload 16.1 A, with the work beside it.

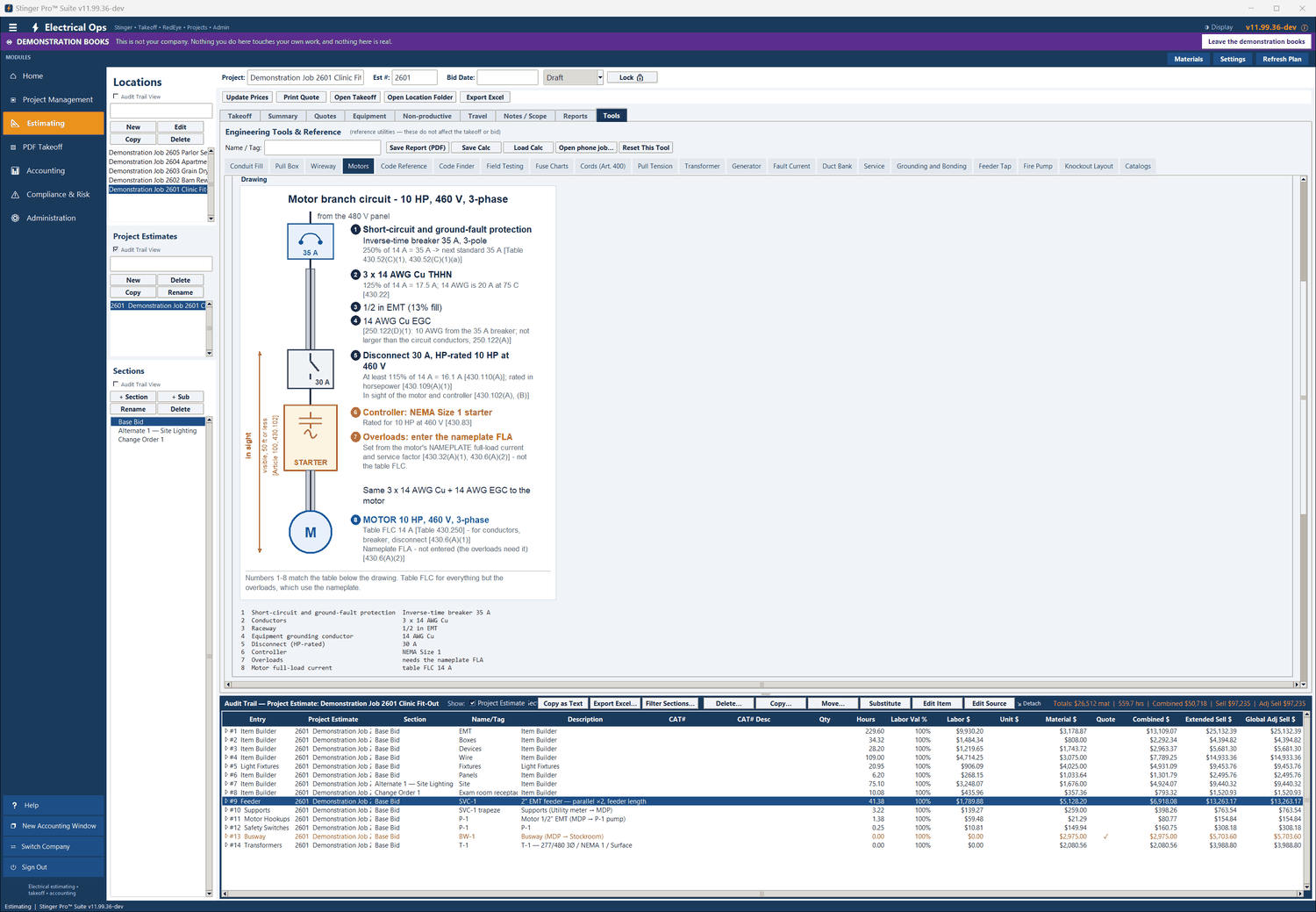

STEP 2 OF 4The one-line: 35 A breaker, 3 x 14 AWG in 1/2 in EMT, 30 A hp-rated disconnect, NEMA Size 1 starter, then the 10 hp motor, with the numbered table below.

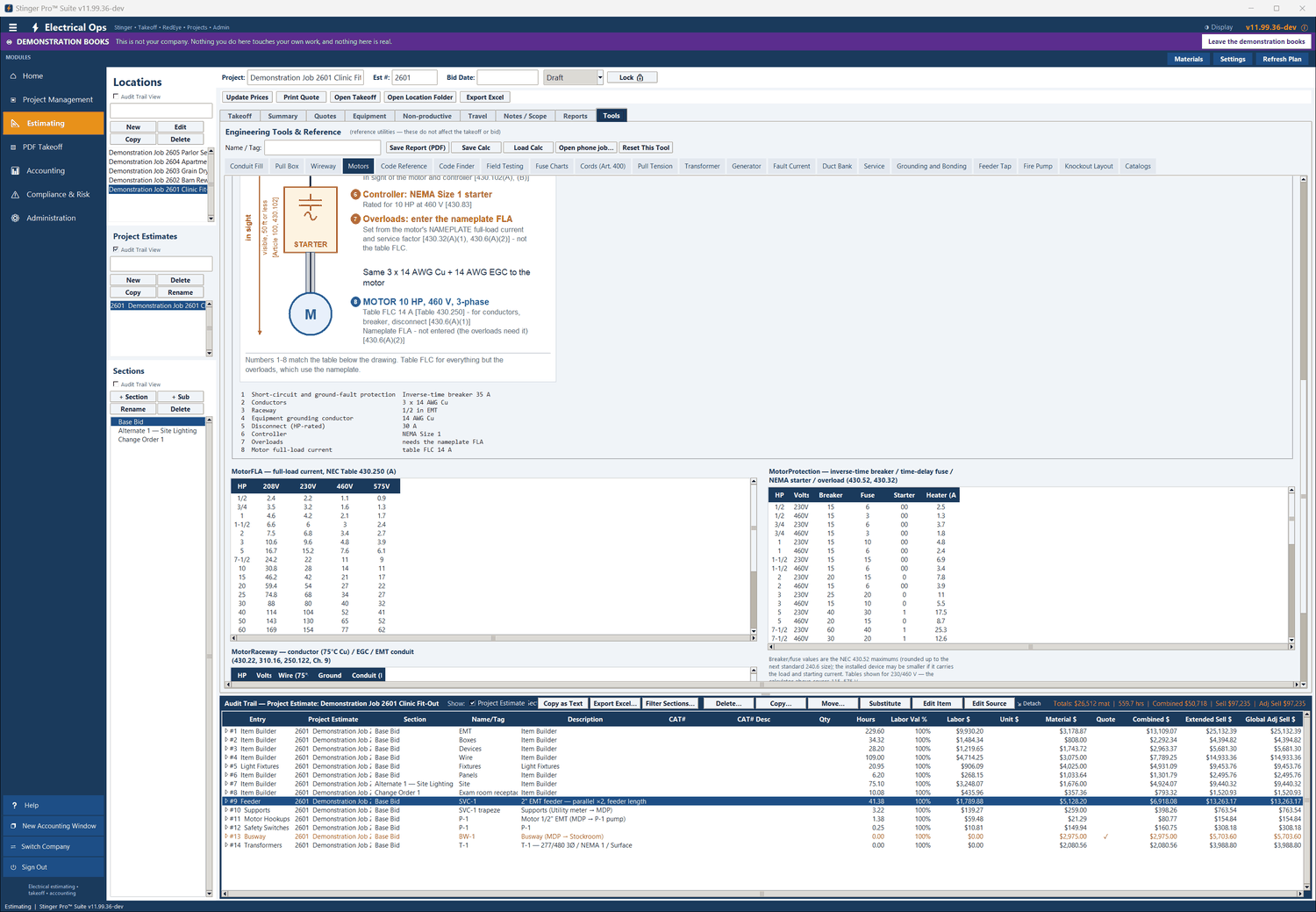

STEP 3 OF 4The motor tables: full-load current by hp from Table 430.250, and breaker, fuse, starter and heater by hp and voltage.

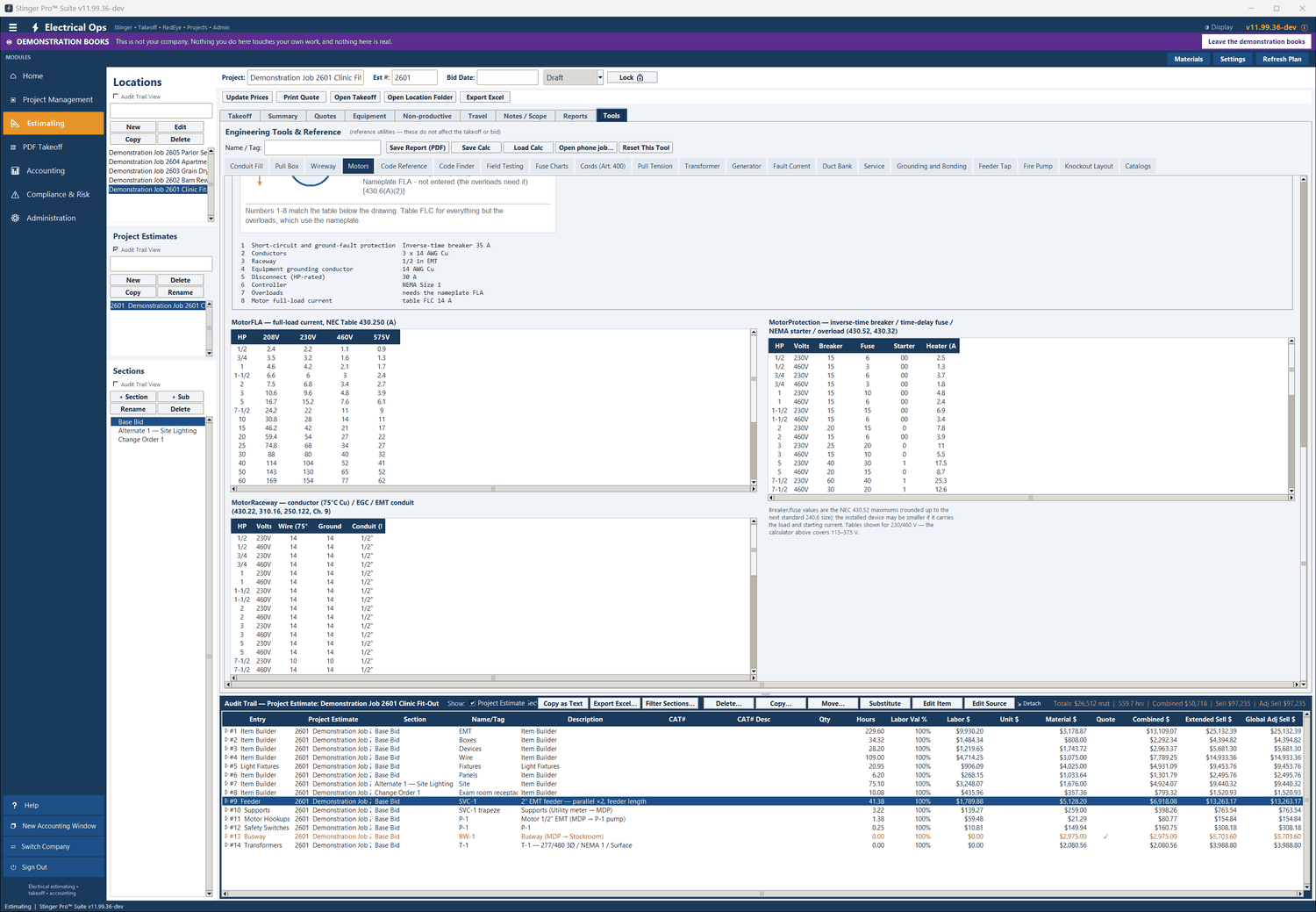

STEP 4 OF 4The raceway table: wire, ground and conduit by hp and voltage, under the full-load current and protection tables.
